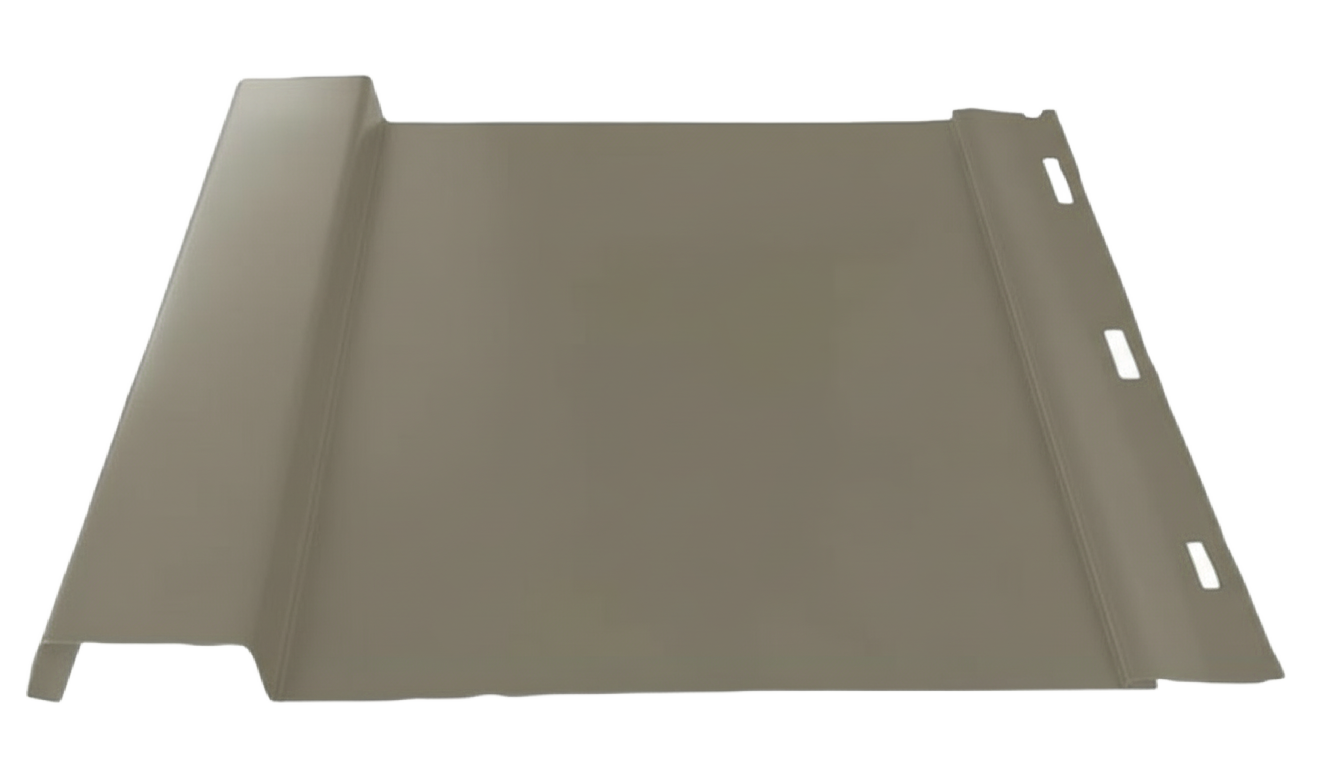

Board & Batten Panels

The Board & Batten panel is a concealed fastener panel that takes place of historically wooden siding, but now boasts the longevity of metal.

Specifications

A black check mark inside a circle.

Thickness

28 Gauge Steel — .0157” Before Paint, .0176” After Paint


Full Hard 88,000 PSI Min

Check mark inside a circle.

Rust Protection

• AZ50 Galvalume Substrate

Check mark inside a circle.

Paint System

• Sherwin-Williams Weather XL

Black check mark inside a circle.

Sizing

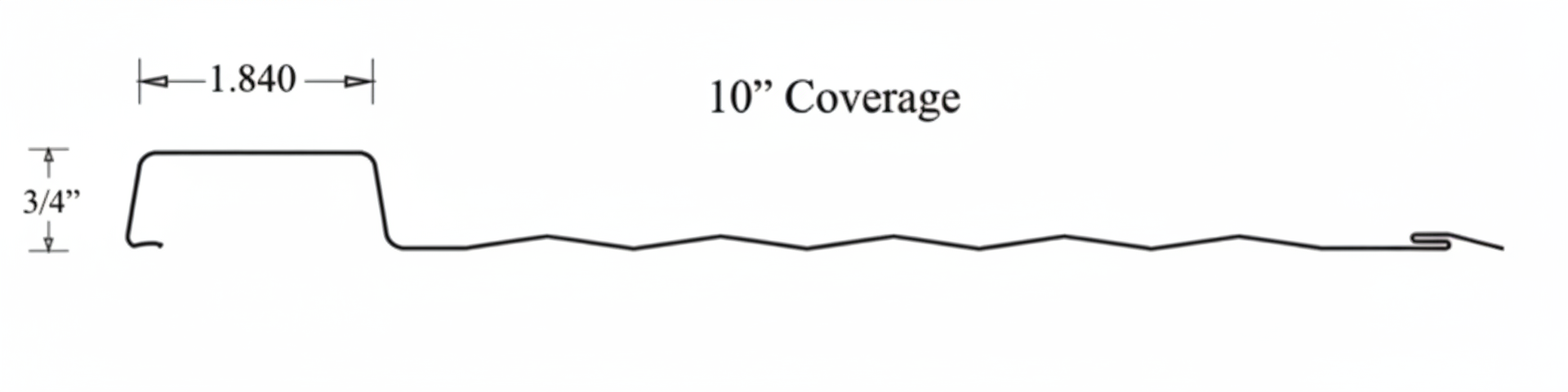

10” Coverage with 3/4” Rib Height

Sherwin-Williams Coil Coatings logo with text in a dark gray color.
WeatherXL logo, white text on a black rectangular background.

Standard

Color Selection Guide

Solid light gray background.
Solid light gray background.
Solid background of a muted, light brown color.
Plain light beige background.
Solid light brown background.
Solid muted brown background.
Solid, muted gray-brown background.
Solid dark olive-brown background.
Solid brown background.
Solid reddish-brown background.
Solid maroon background.
Solid dark maroon background.
Solid gray background.
Solid, dark gray background.
Solid dark gray background.
Solid dark green background.
Solid dark green background.
Solid, burnt orange background.
Solid teal background.
Solid teal background.
Brown and purple abstract background with a textured, block-like pattern.
Close-up of a light gray, textured surface; could be fabric or concrete.

Note: This guide is for the following panel profiles: 28-GA Classic 5-Rib, RX-4, 3/4 Corrugated, Modern Plank, Metal-Lap, Board & Batten, and 5V.

Note: Also available in 26-GA.

Crinkle

Color Selection Guide

Red-orange textured surface with subtle speckled white highlights.
Close-up of dark asphalt with a textured, granular surface.
Brown surface with scattered, light-colored specks.
Dark green speckled textured surface.
Dark gray speckled granite texture.
Dark speckled surface; gray and white flecks on a dark brown background.
Brown granite-like surface with small light-colored speckles.
Gray speckled texture.
Gray textured surface with speckled, lighter-colored flecks.
Dark gray textured surface, speckled with lighter gray flecks.
Textured white background.

Note: This guide is for the following panel profiles: 28-GA Classic 5-Rib, RX-4, 3/4 Corrugated, Modern Plank, Metal-Lap, Board & Batten, and 5V.

Speak to one of our experts!

All of our staff are extremely knowledgeable in their trade, when you choose Reurink you're getting unmatched customer service every time.

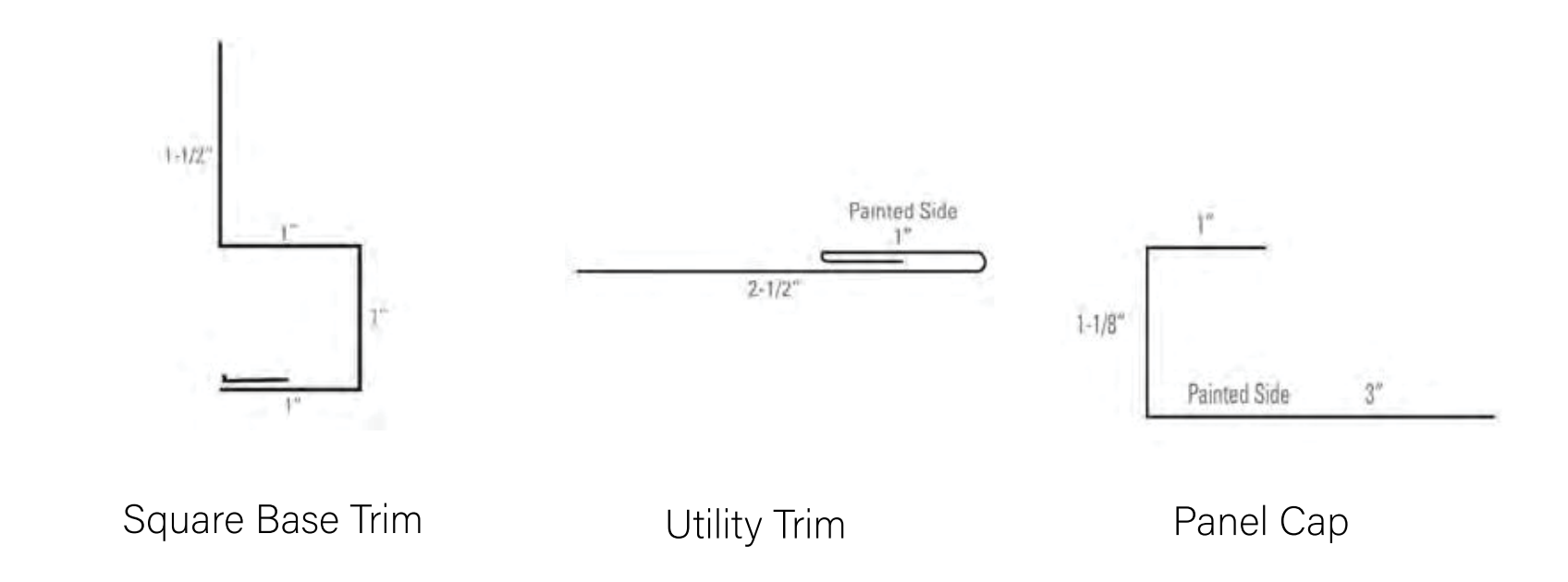

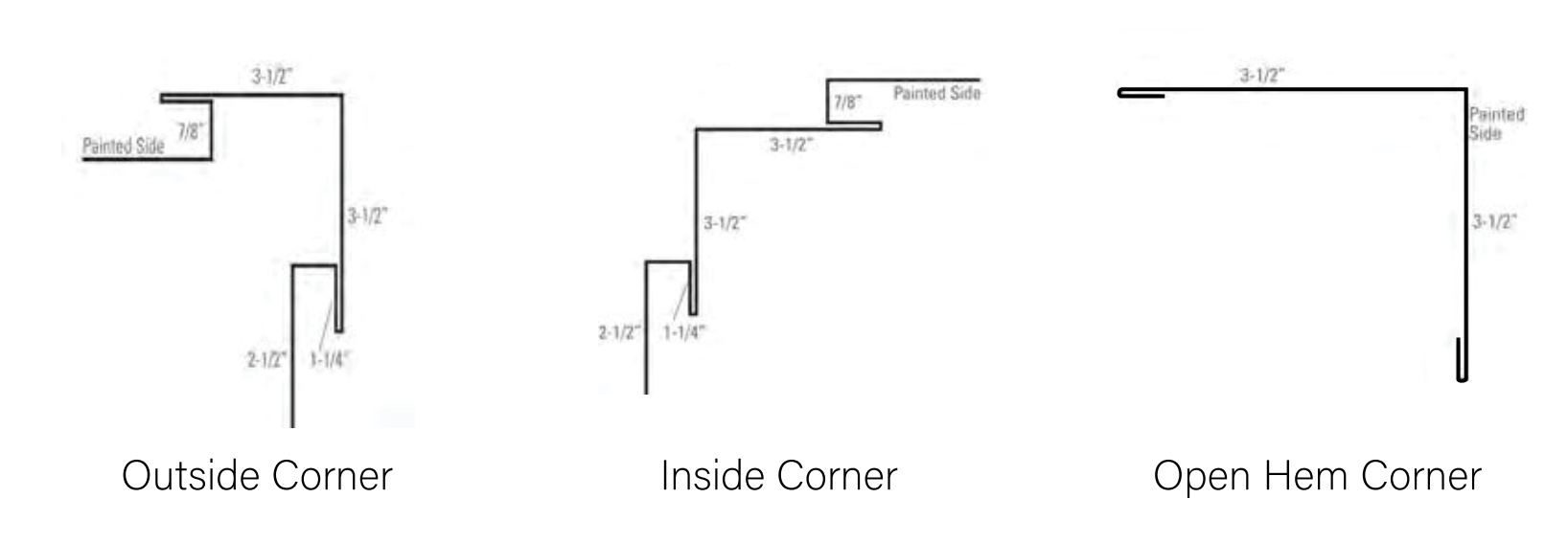

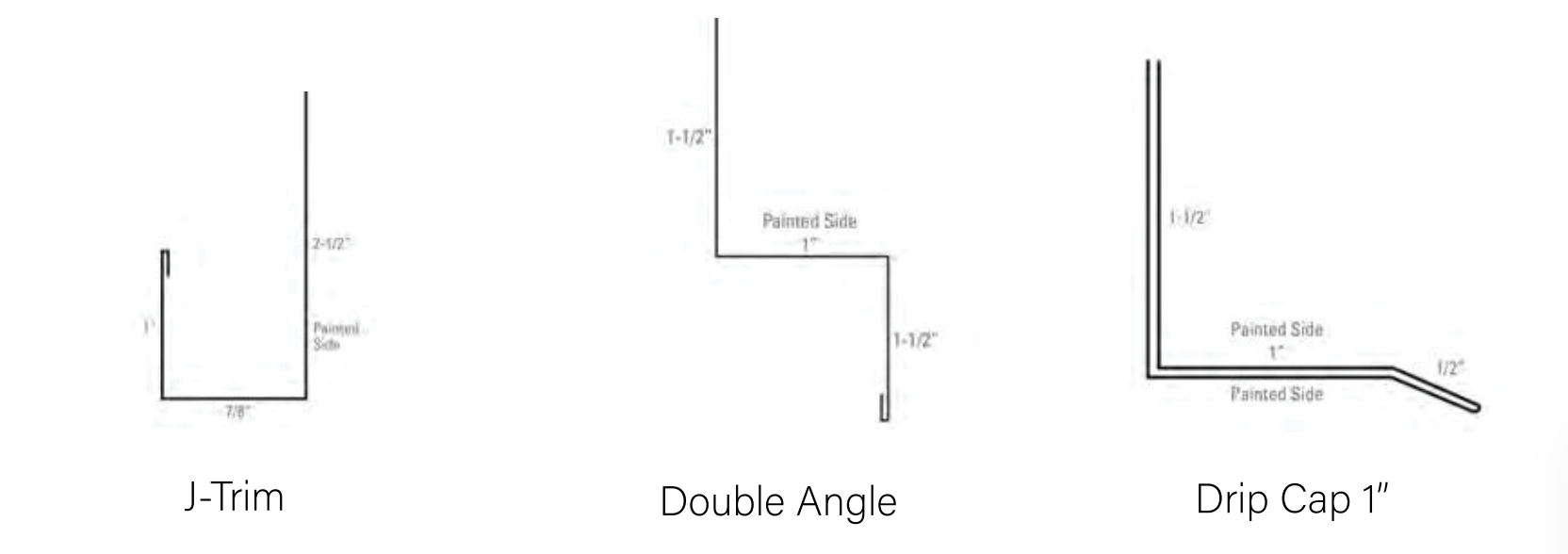

Trims

Board and Batten Panels
