Classic 5-Rib Panel

Classic 5-Rib Panel is versatile and can be used in varying applications, such as residential, commercial, and architectural projects.

Specifications

Checkmark icon inside a circle, indicating a selection or completion.

Thickness

• 28 Gauge Steel. 0157” Before Paint, .0176” After Paint


• Full Hard 88,000 PSI Min

A black checkmark inside a black circle.

Rust Protection

• AZ50 Galvalume Substrate

Check mark inside a circle.

Paint System

• Sherwin-Williams Weather XL

Checkmark inside a circle.

Sizing

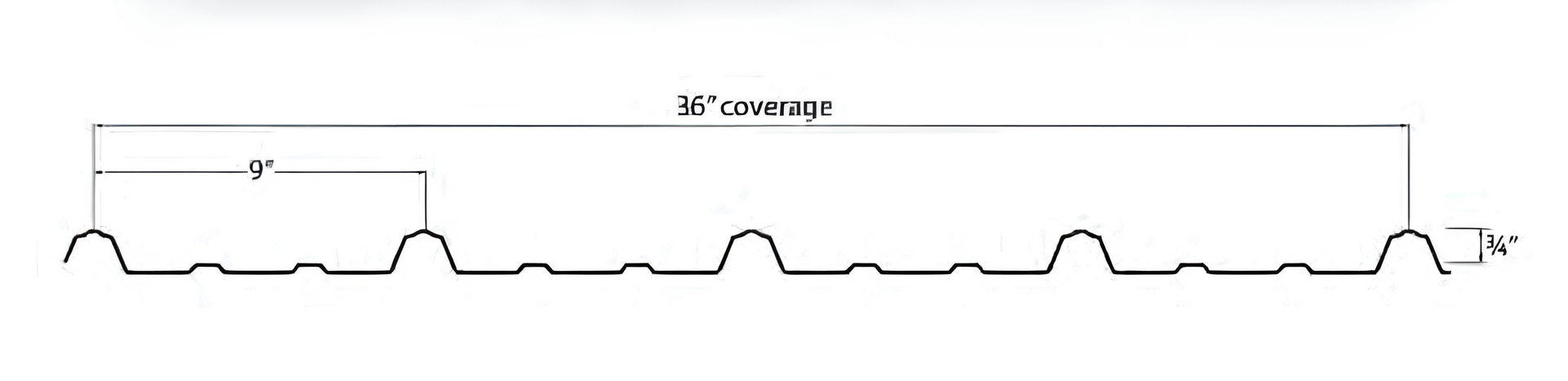

• 36” Coverage with 3/4” Rib Height
• Minimum Slope: 3/12

Sherwin-Williams Coil Coatings logo. Black text on white background.
WeatherXL logo on a black rectangle, white text.

Standard

Color Selection Guide

Light gray background.
Solid light gray background.
Solid light beige background.
Solid pale beige background.
Solid background, medium brown.
Solid dark taupe background.
Solid light brown background.
Solid field drab background.
Solid brown background.
Solid red background.
Solid maroon background.
Solid dark maroon background.
Solid gray background.
Solid dark gray background.
Solid dark teal background.
Solid dark green background.
Solid dark green background.
Solid, burnt orange background.
Solid teal-colored background.
Solid teal background.
Abstract brown and purple textured background with a subtle brick-like pattern.
Light gray, textured surface; appears to be carpet or fabric.

Note: This guide is for the following panel profiles: 28-GA Classic 5-Rib, RX-4, 3/4 Corrugated, Modern Plank, Metal-Lap, Board & Batten, and 5V.

Note: Also available in 26-GA.

Crinkle

Color Selection Guide

Close-up of a reddish-brown textured surface with small, light-colored specks scattered throughout.
Dark gray textured surface.
Brown speckled ground texture.
Dark green surface with a speckled pattern.
Black granite countertop with speckled gray and white flecks.
Dark speckled background with small light-colored spots scattered throughout.
Brown speckled surface.
Gray-green speckled surface.
Gray speckled stone surface.
Dark gray textured surface with light-colored flecks.
White textured surface.

Note: This guide is for the following panel profiles: 28-GA Classic 5-Rib, RX-4, 3/4 Corrugated, Modern Plank, Metal-Lap, Board & Batten, and 5V.

Speak to one of our experts!

All of our staff are extremely knowledgeable in their trade, when you choose Reurink, you're getting unmatched customer service every time.

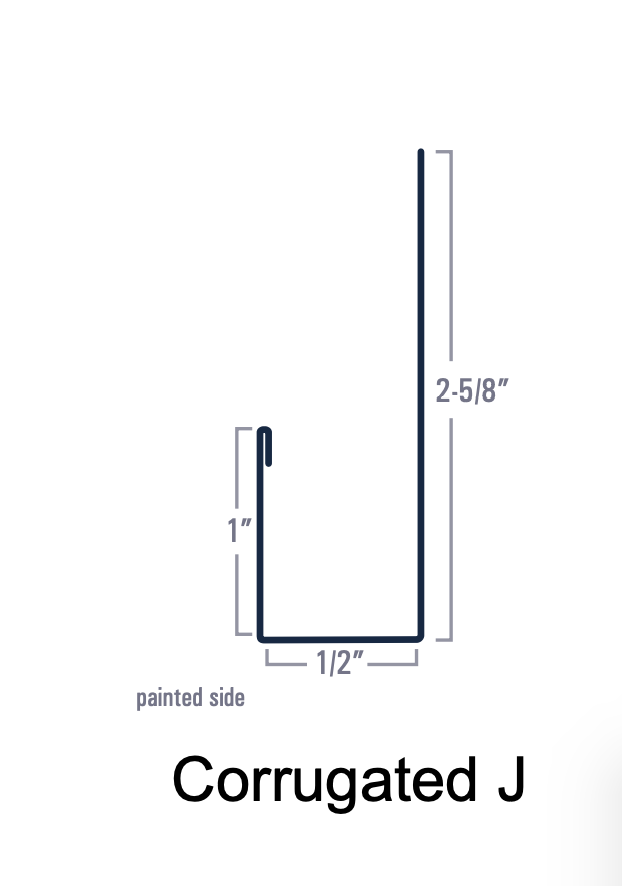

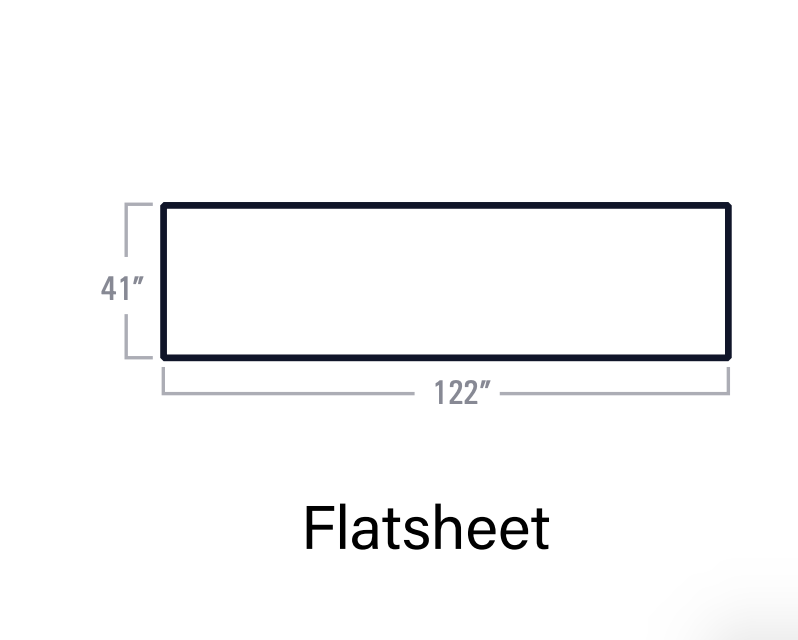

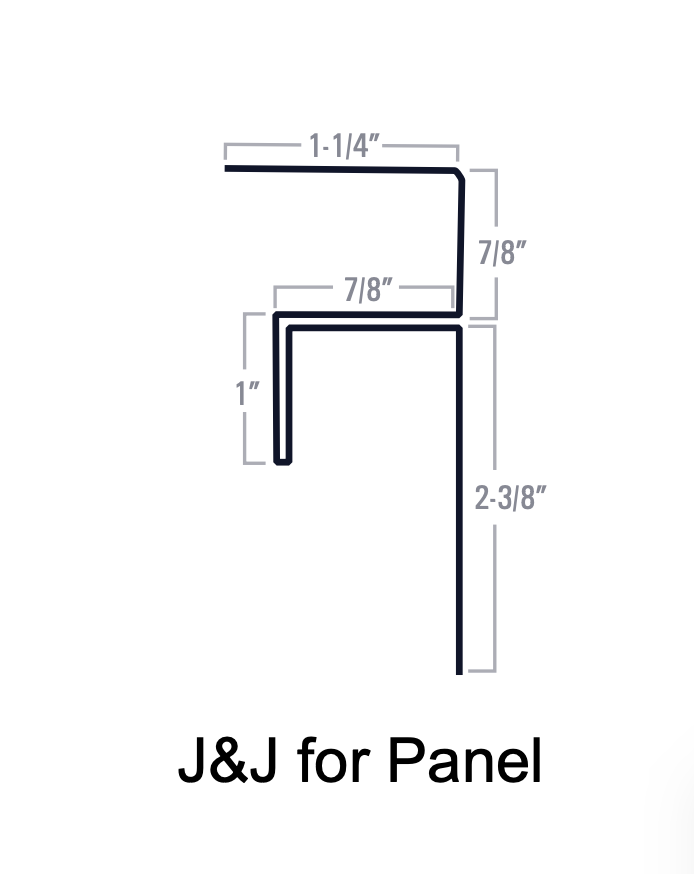

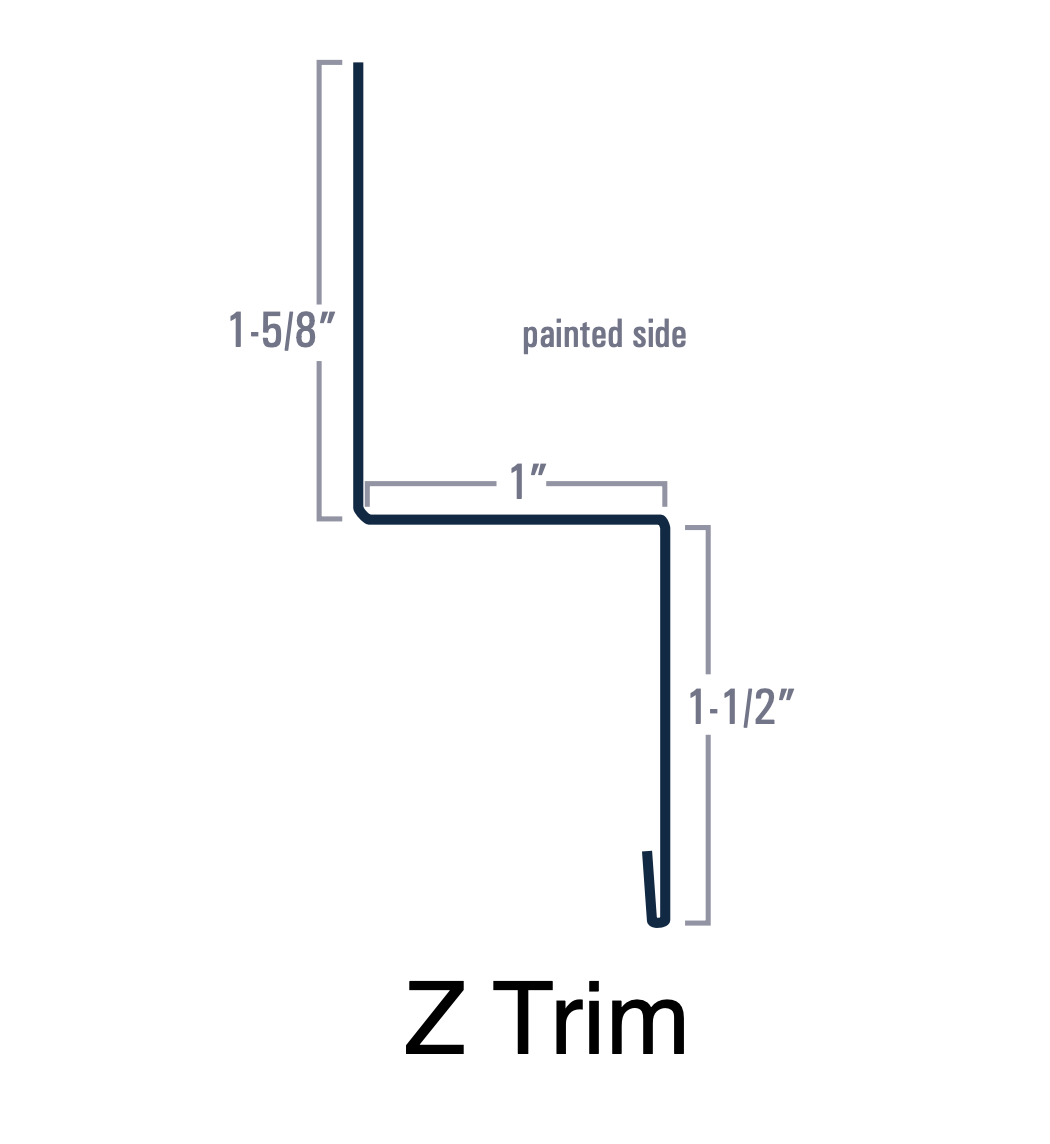

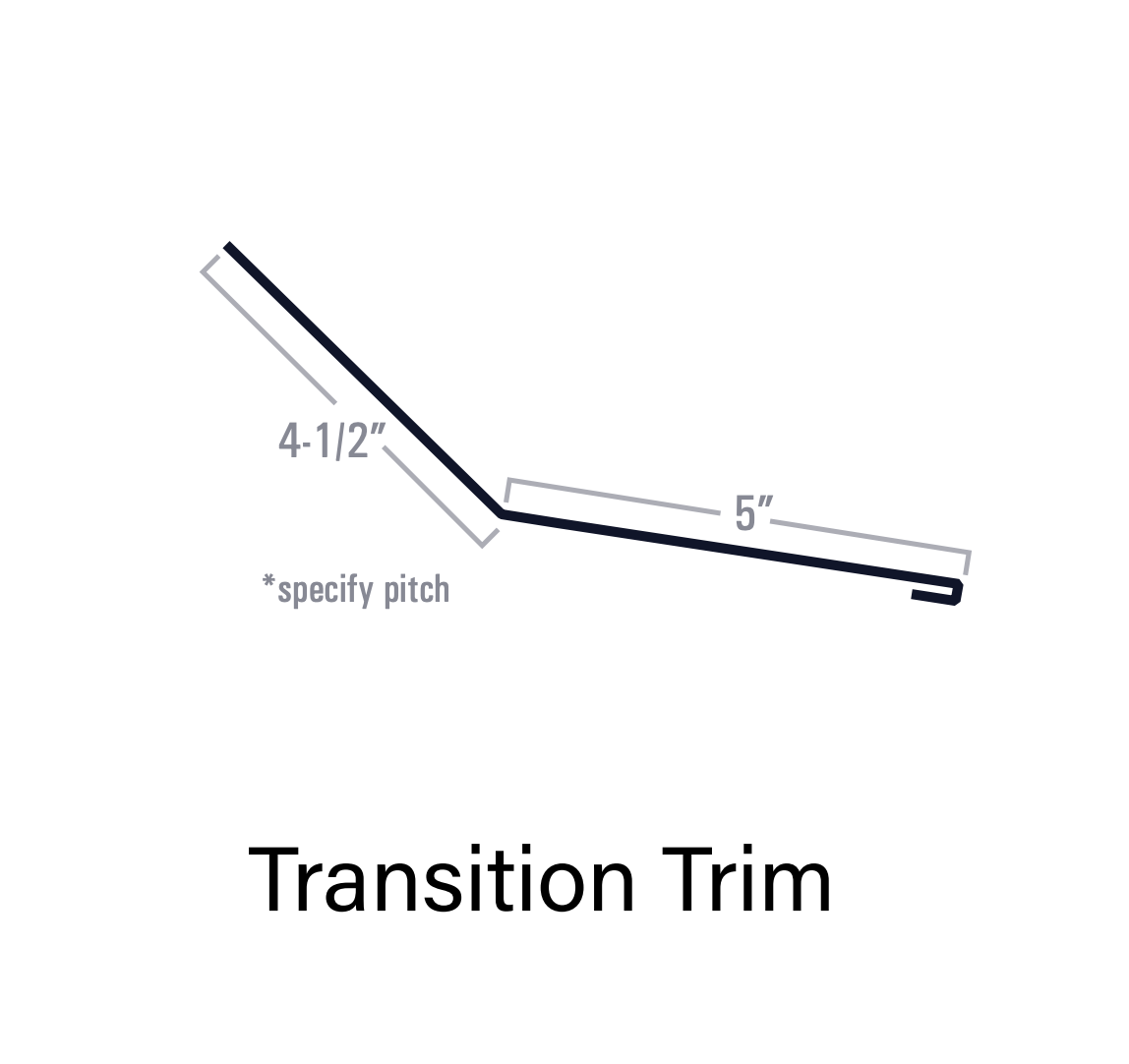

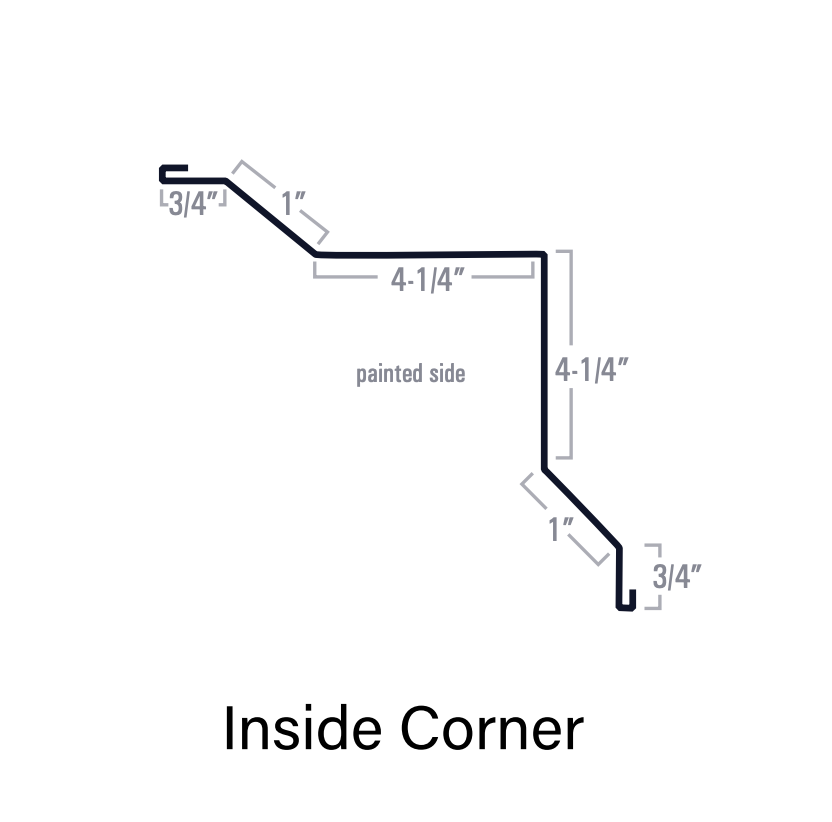

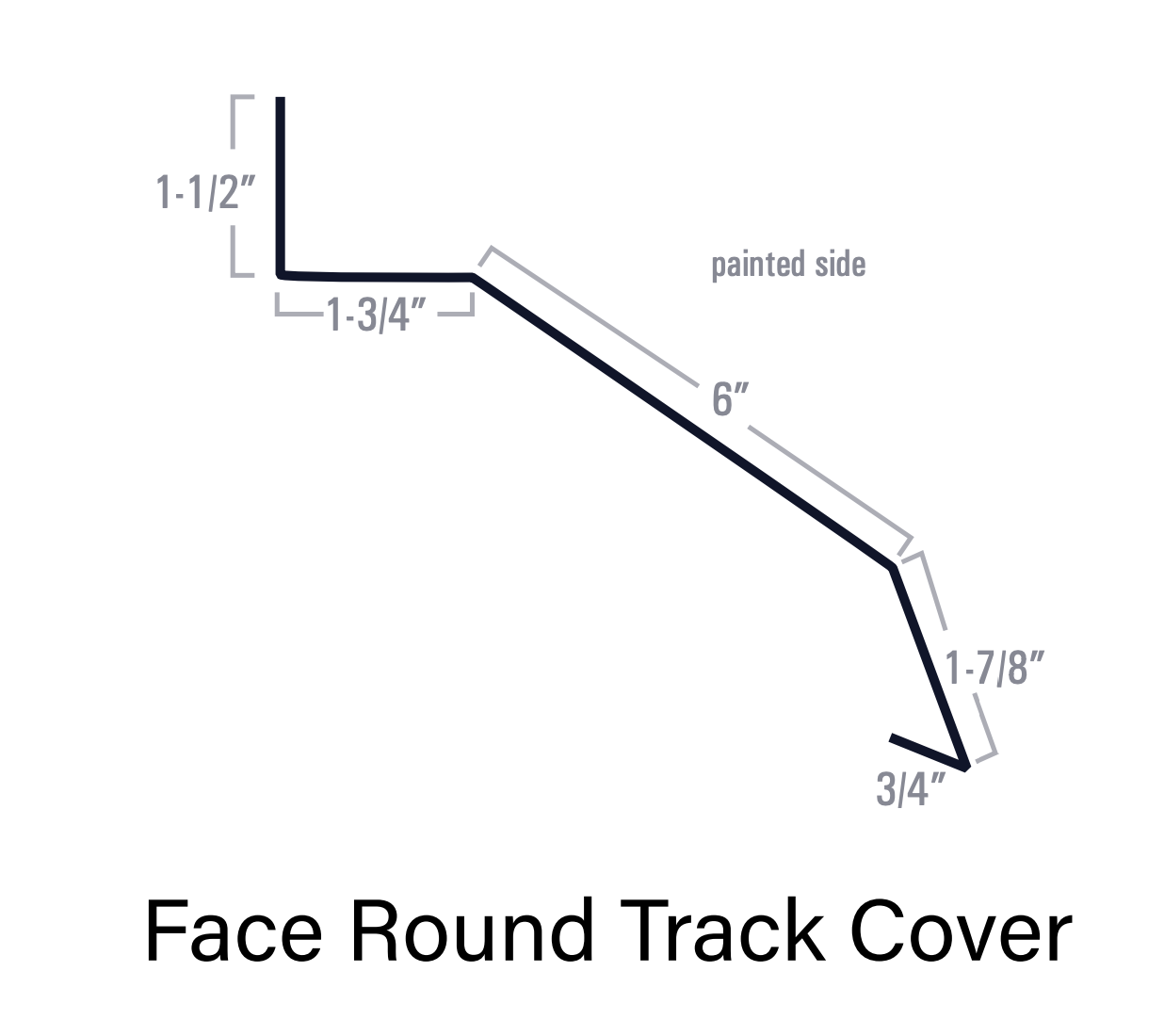

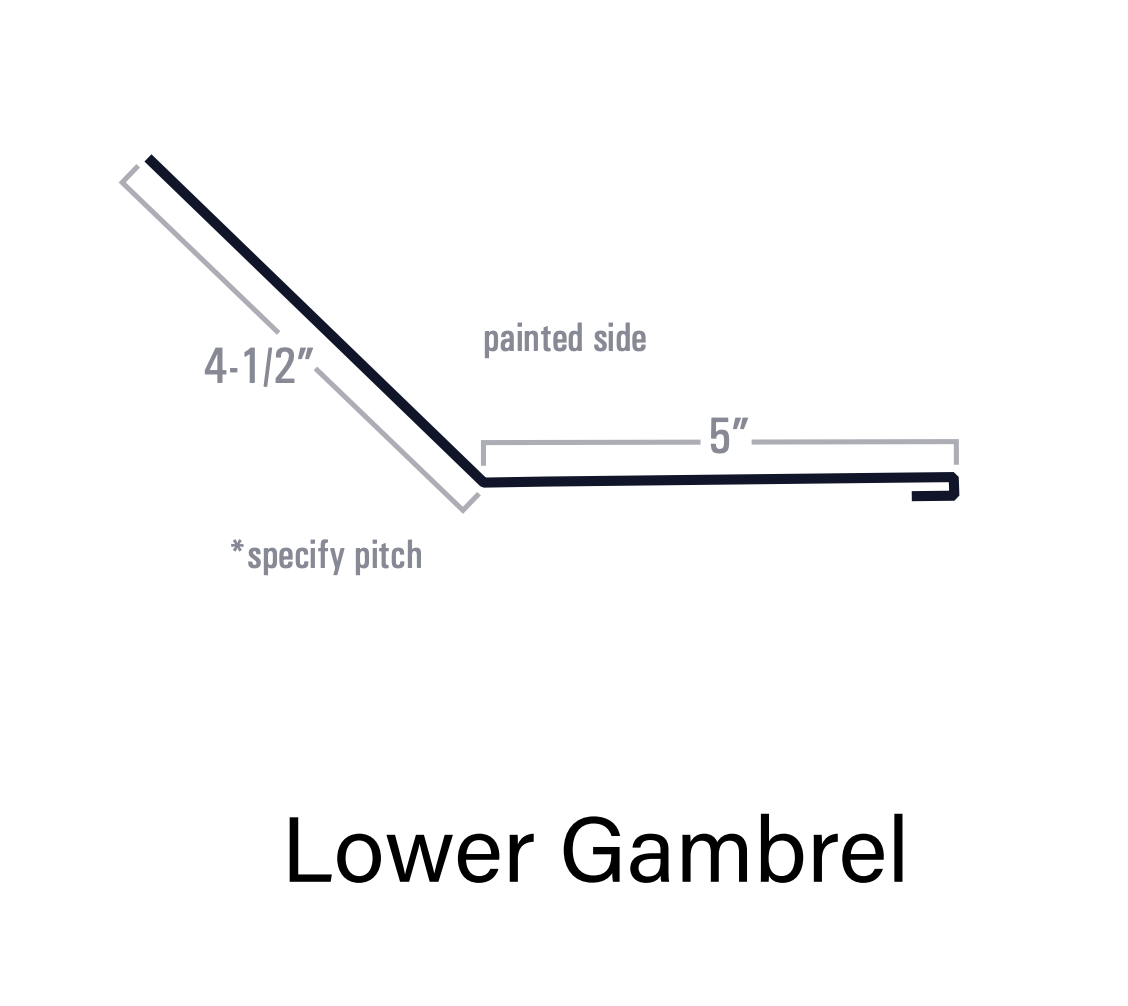

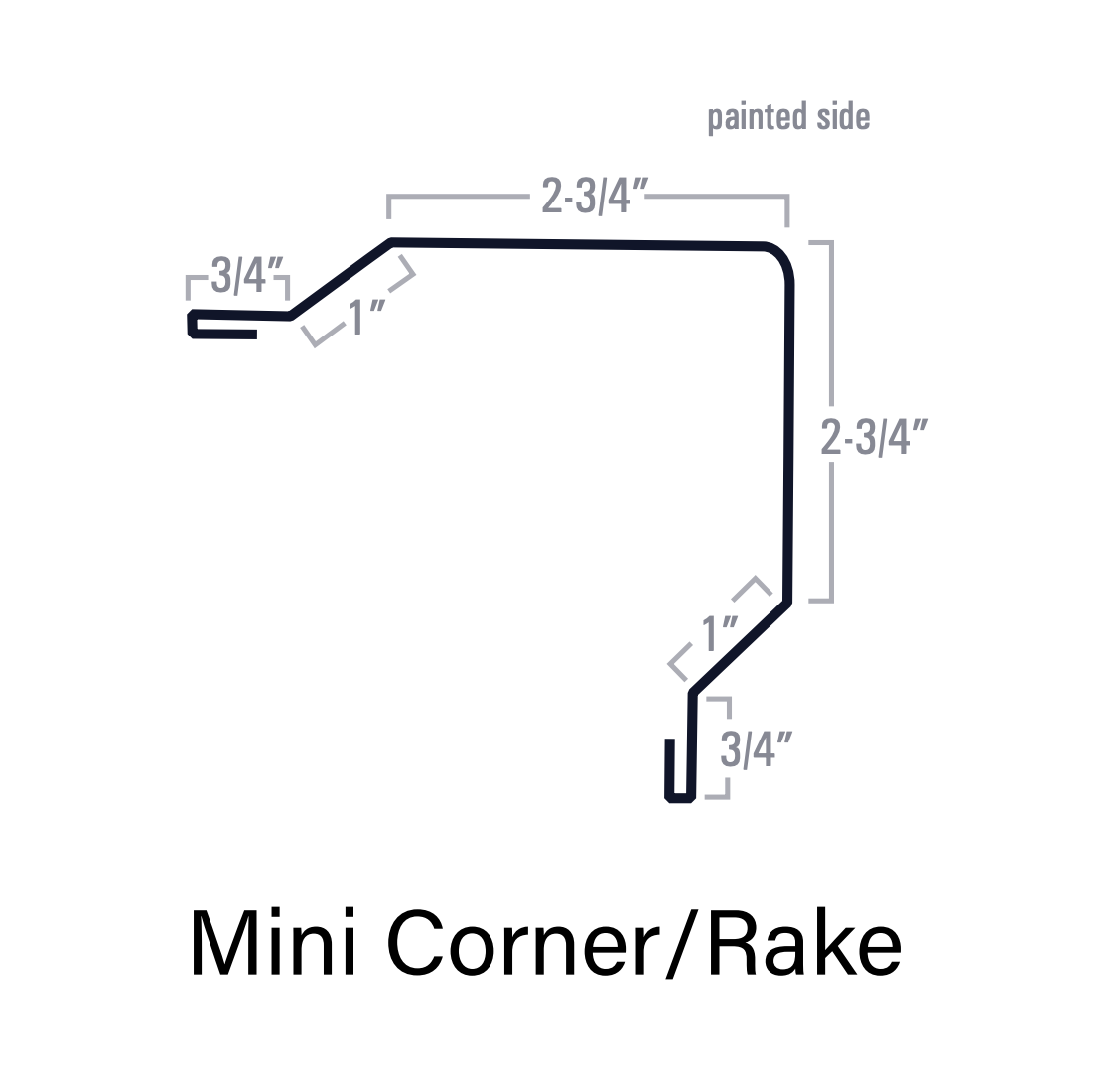

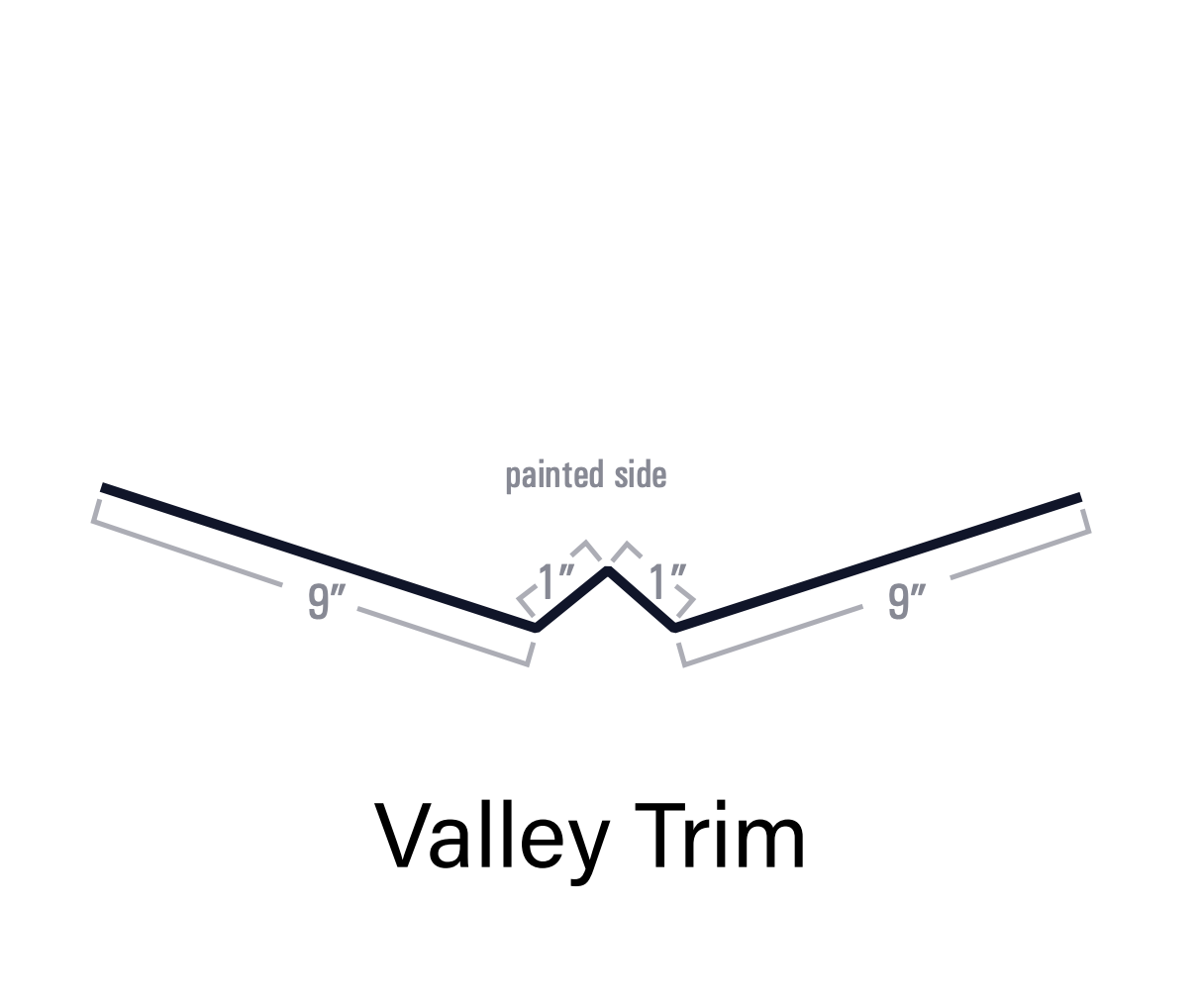

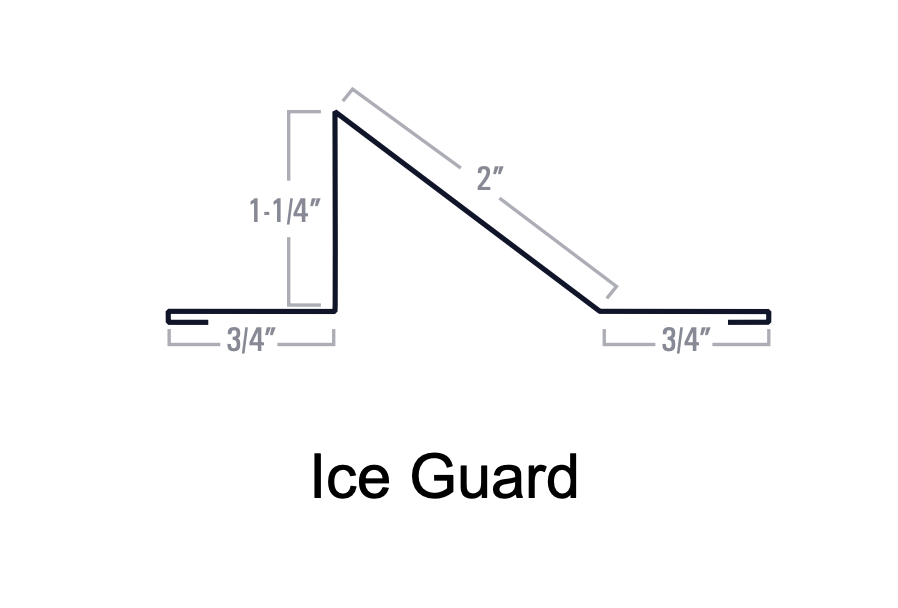

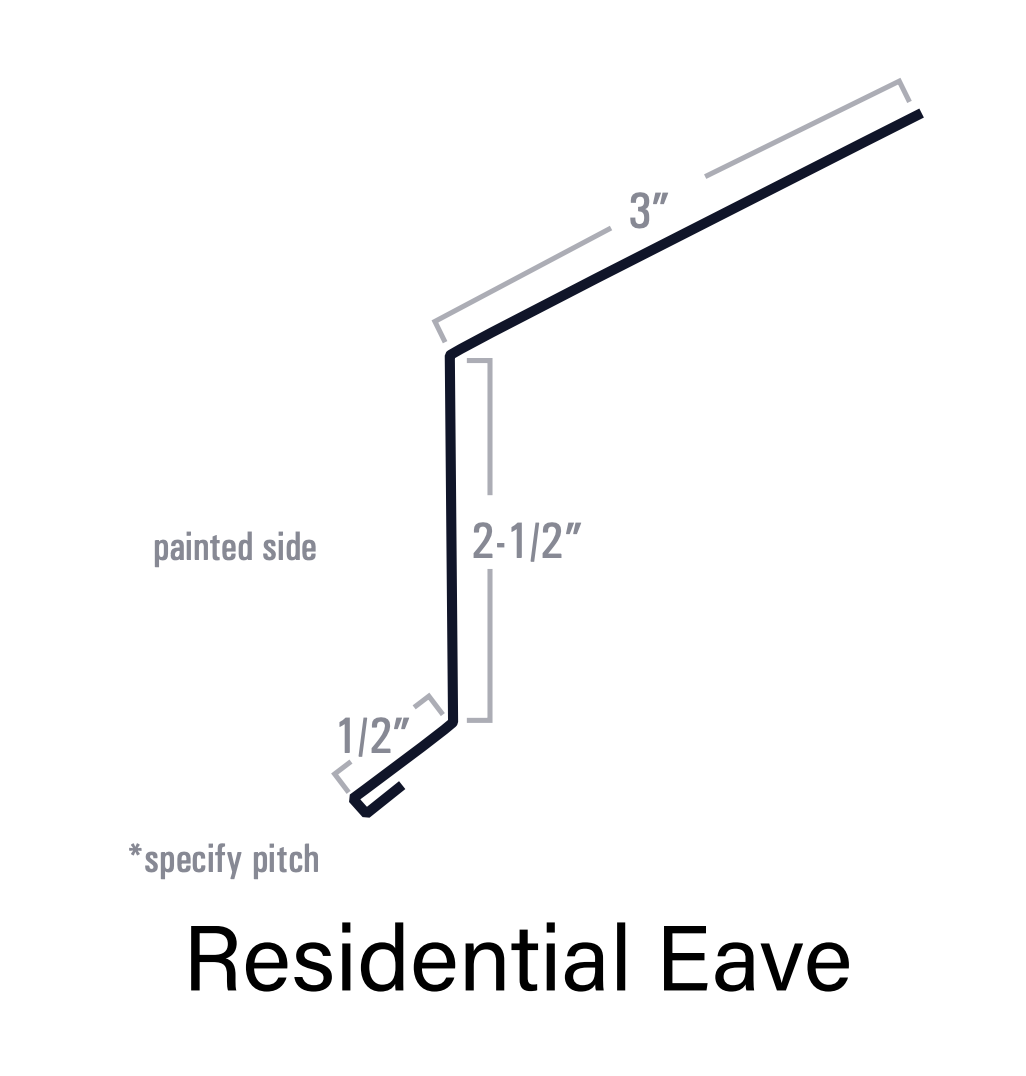

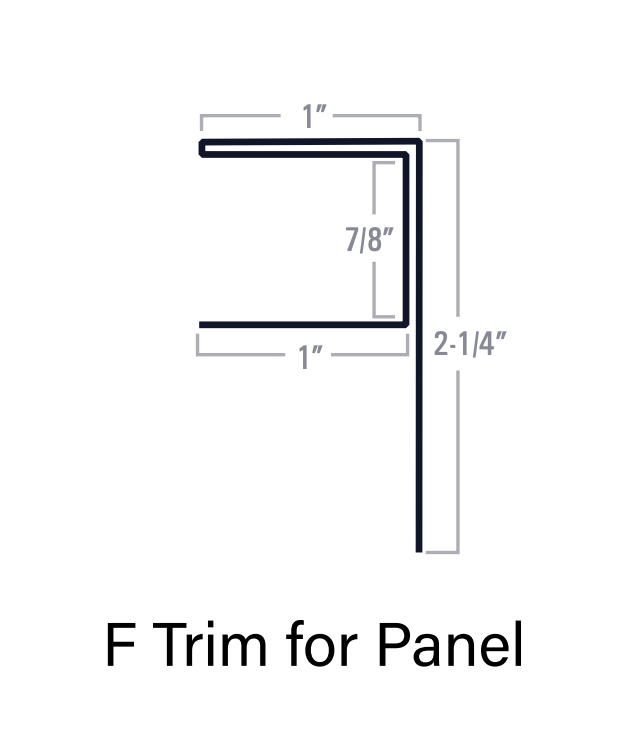

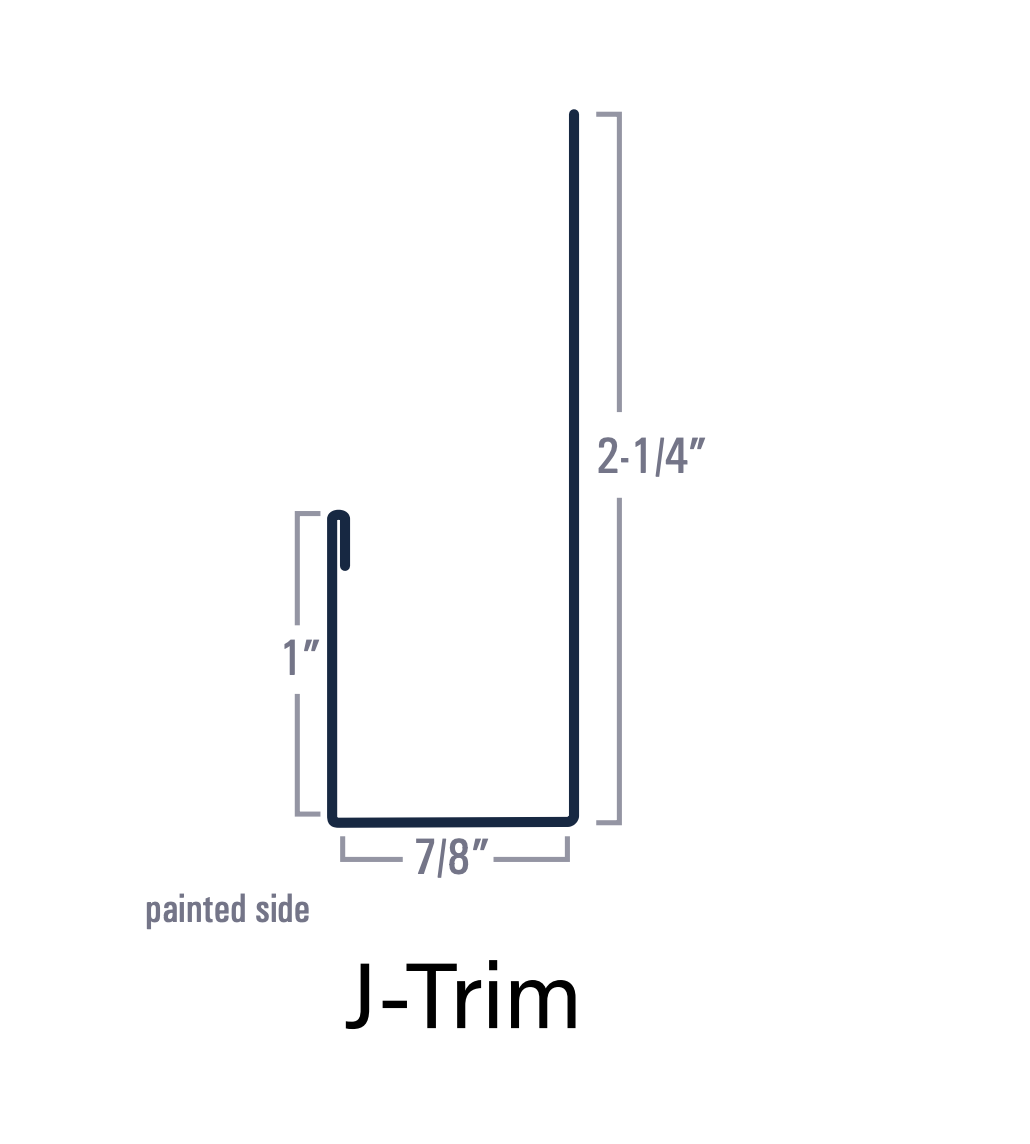

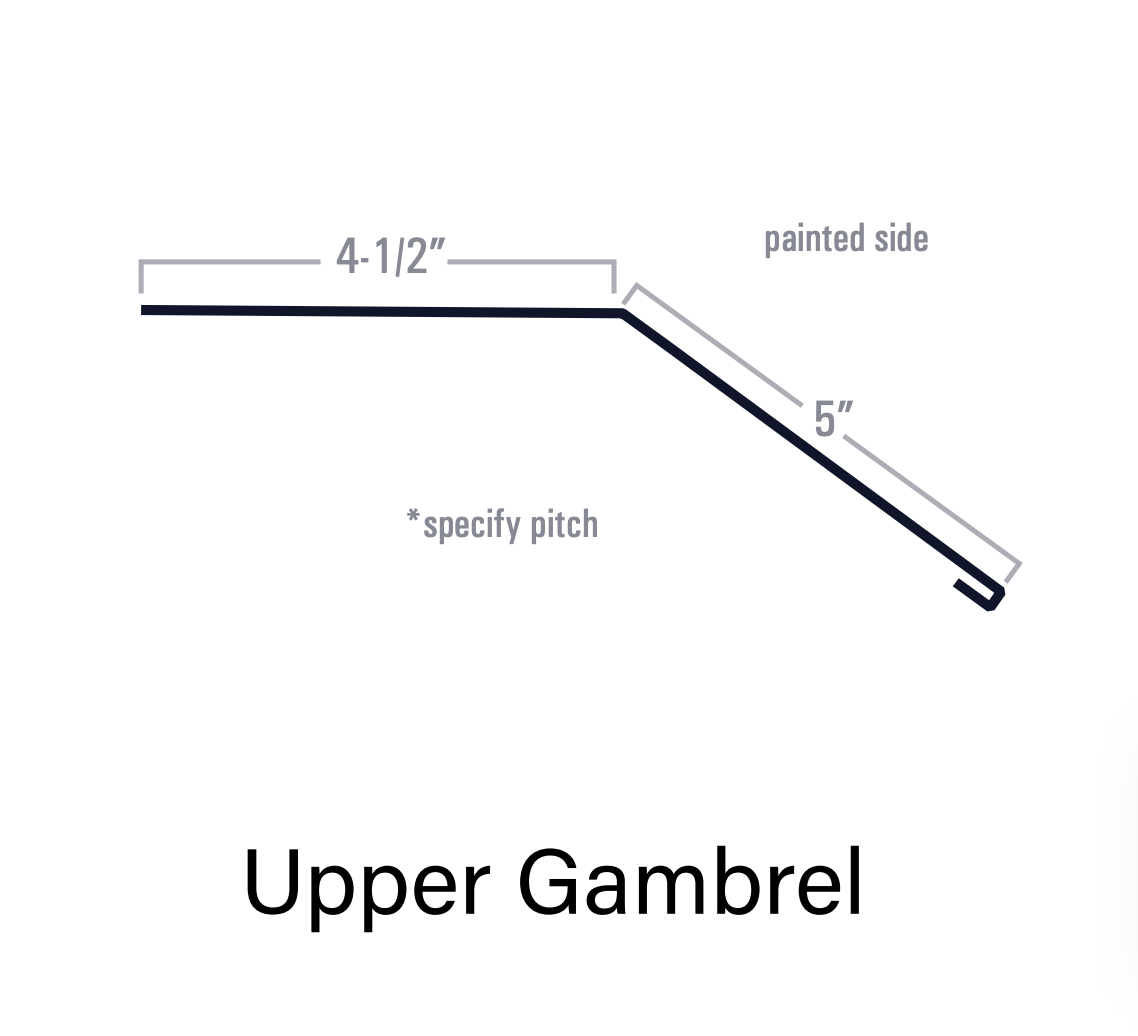

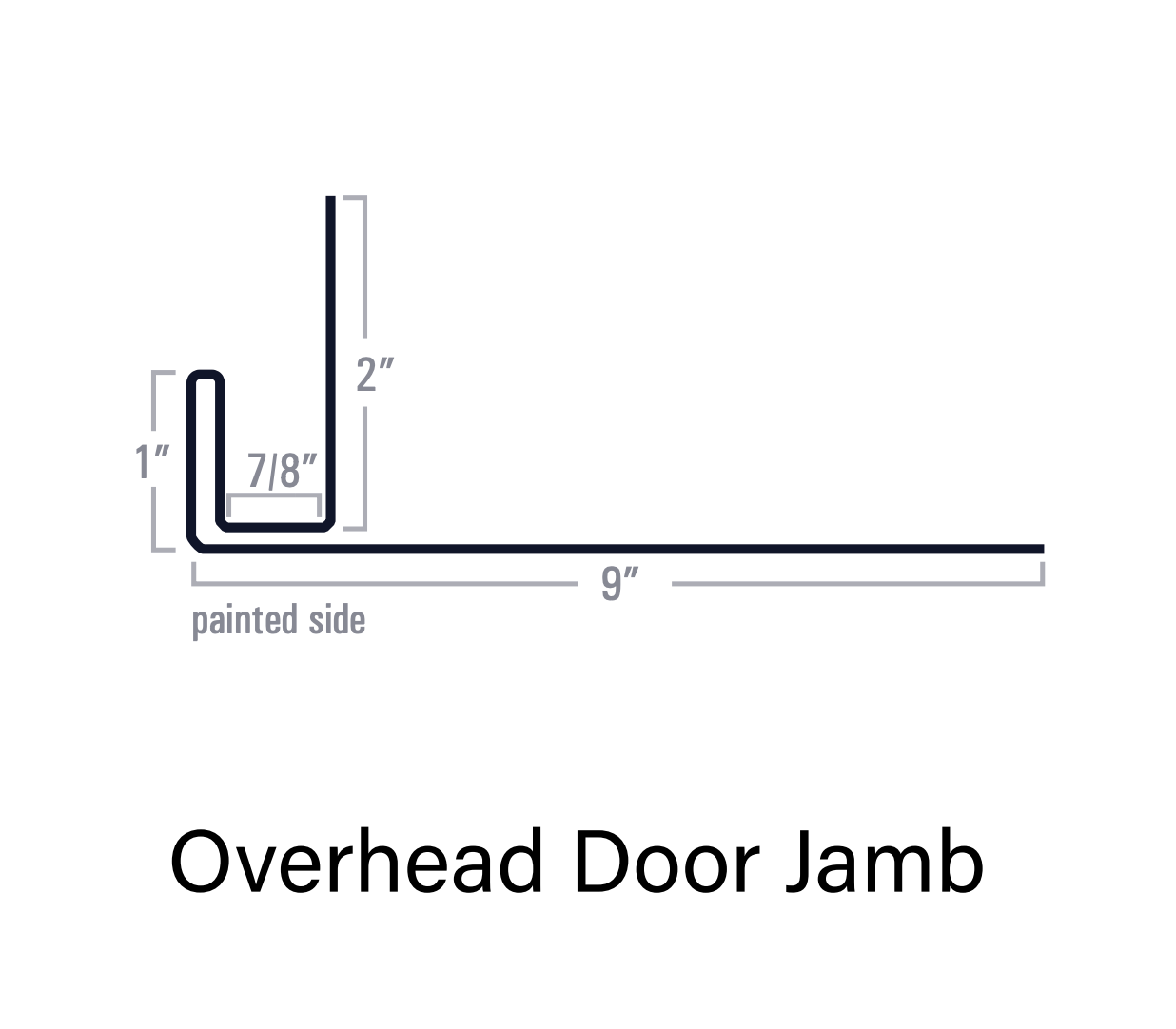

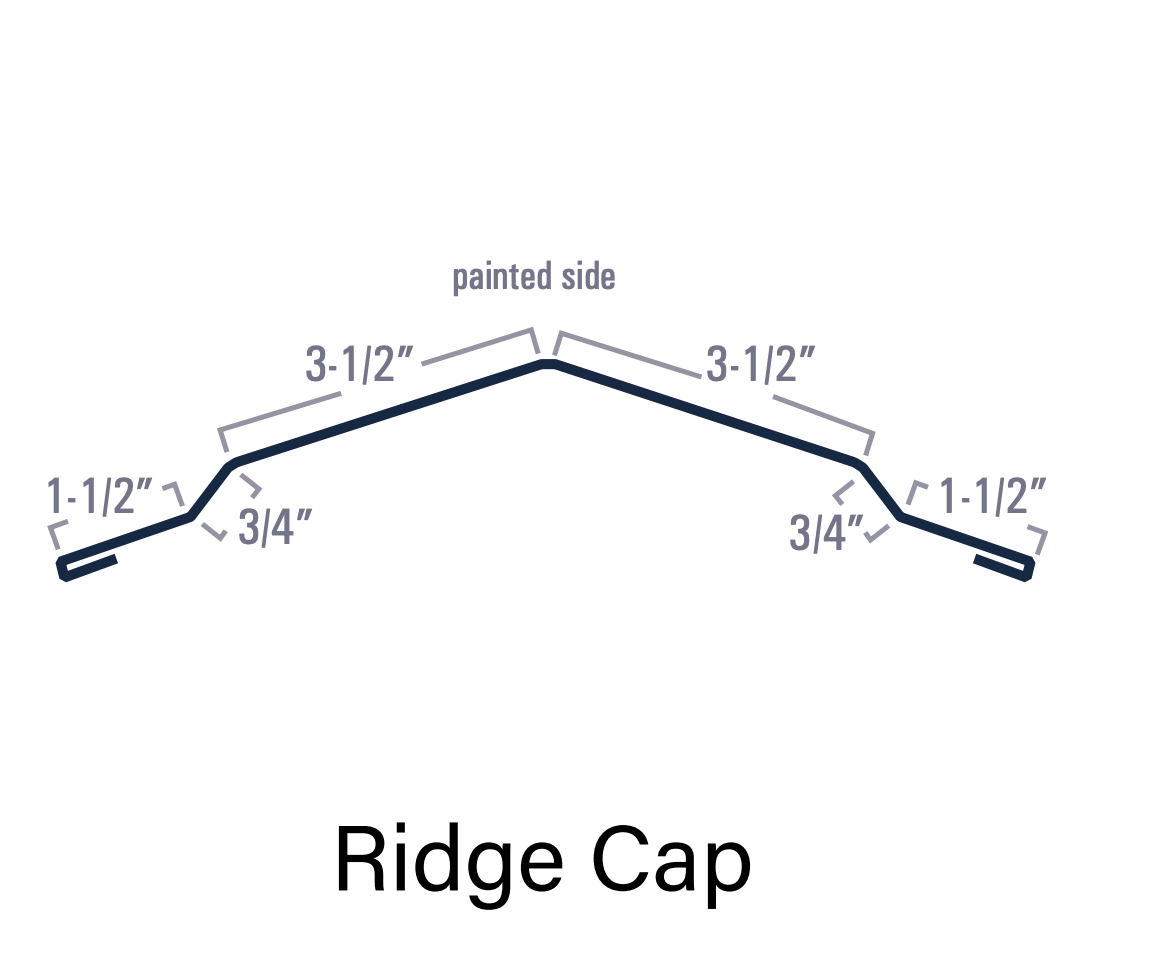

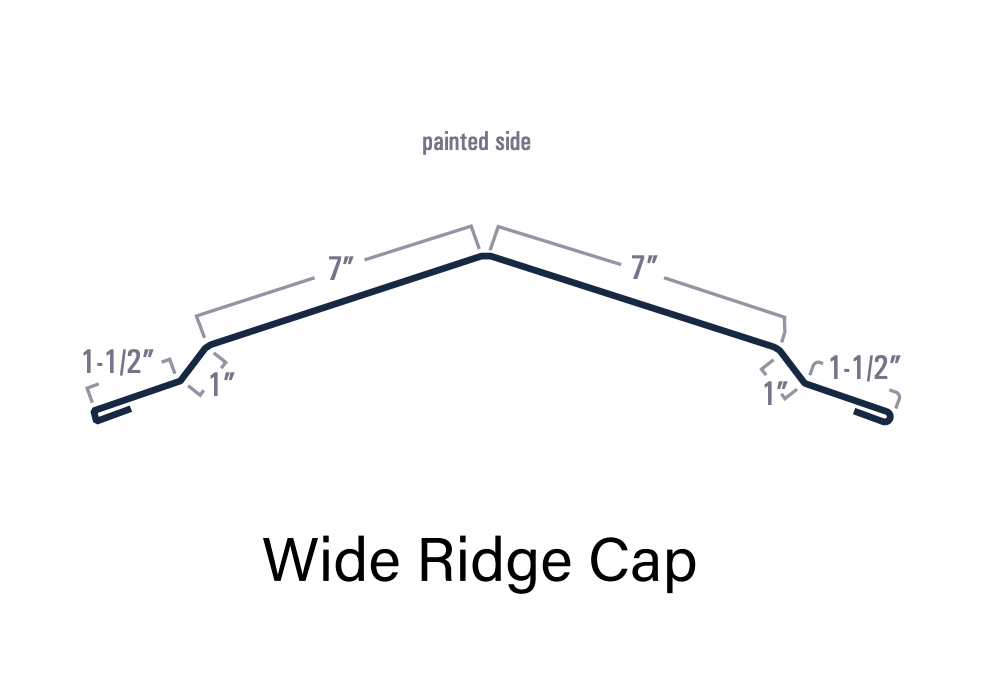

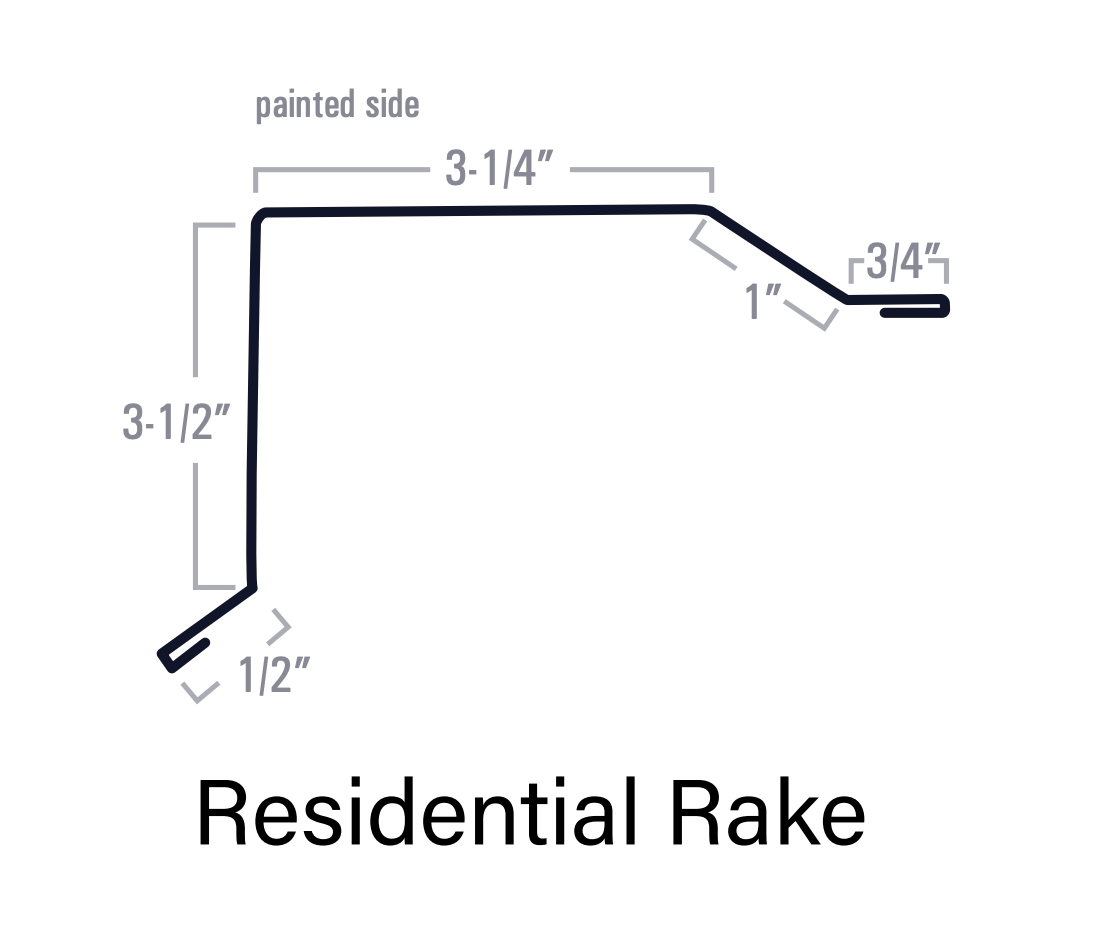

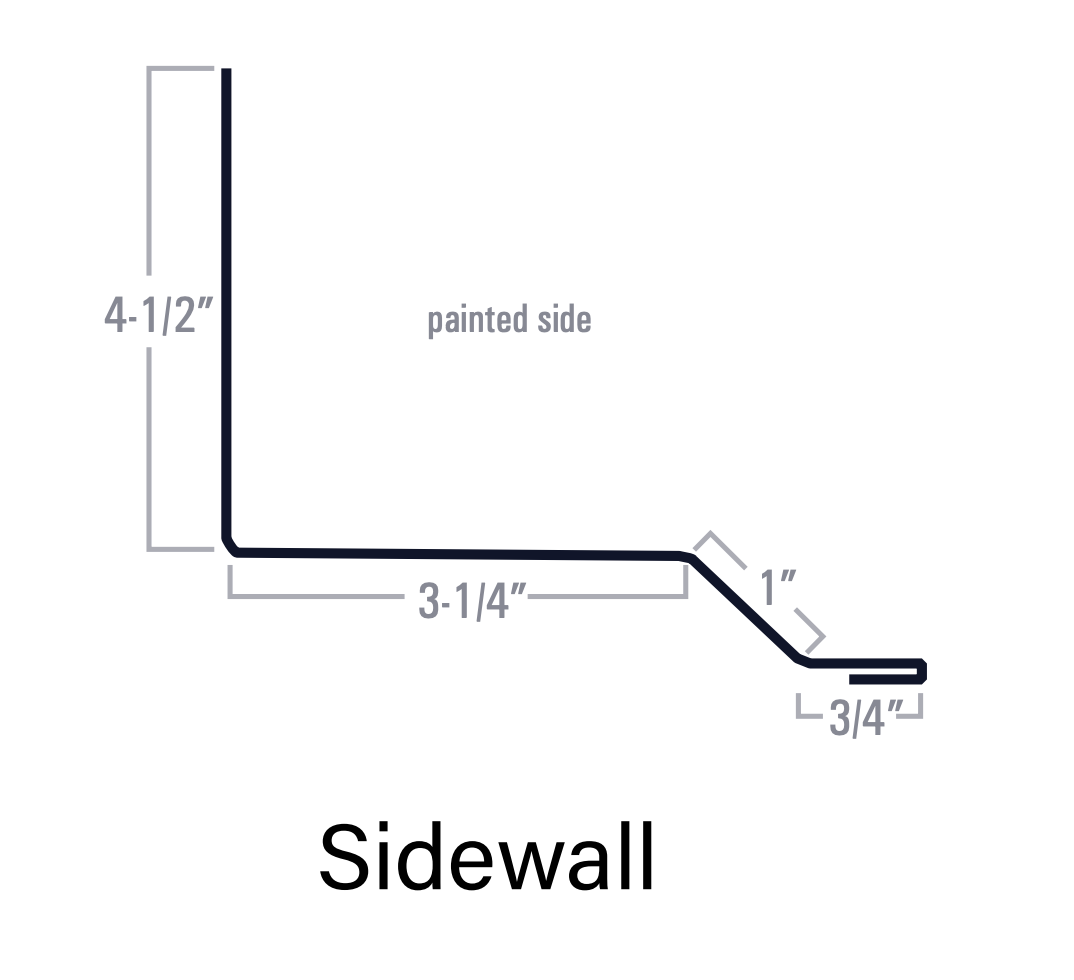

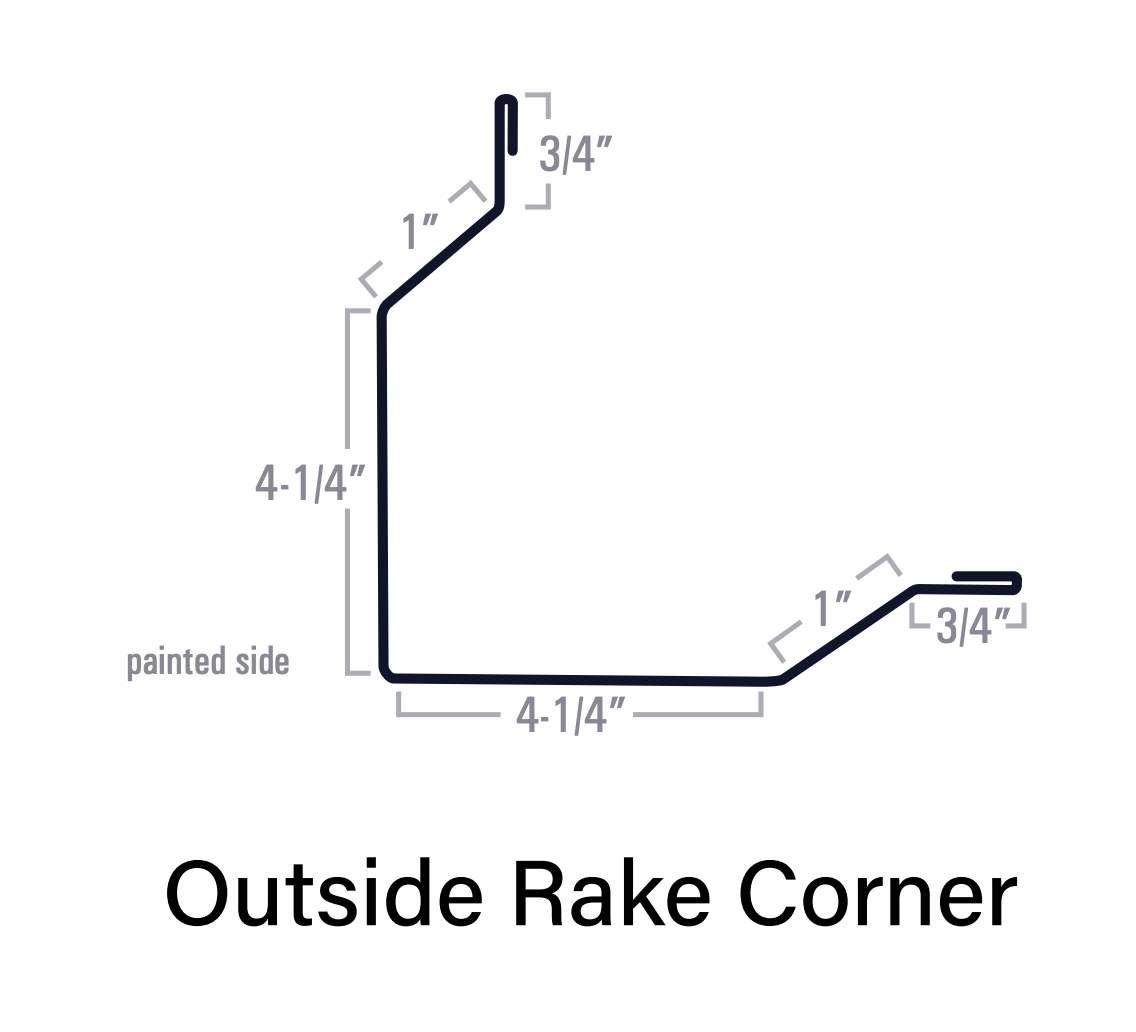

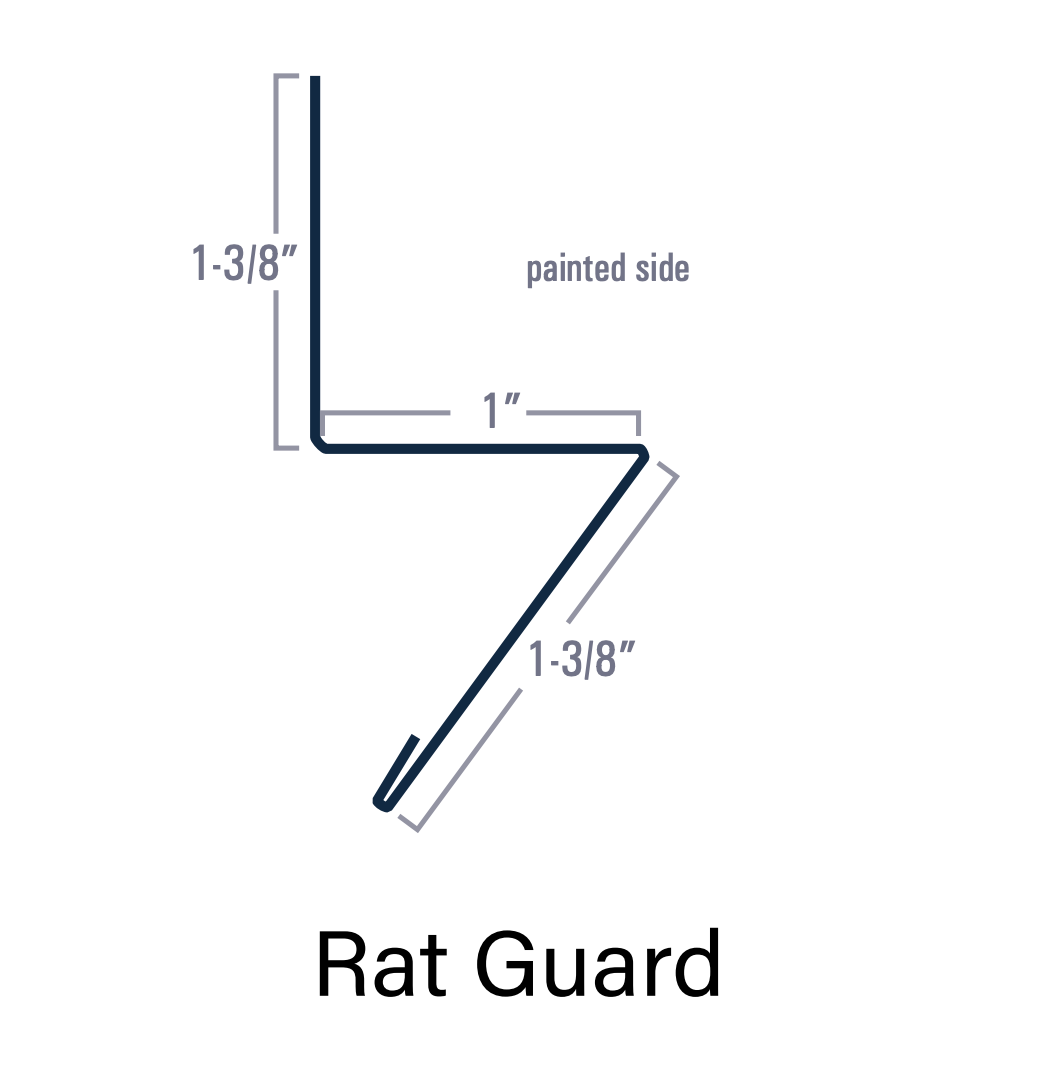

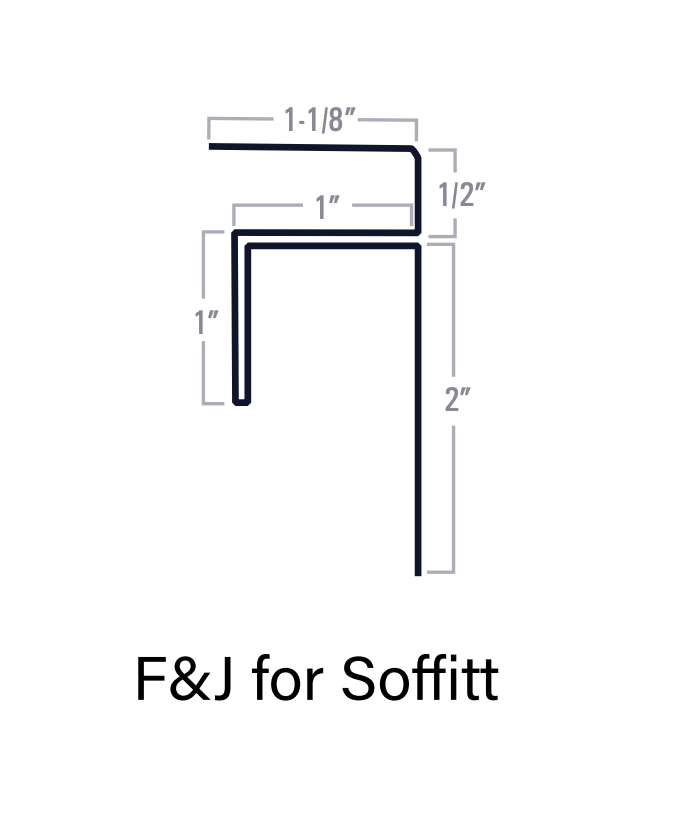

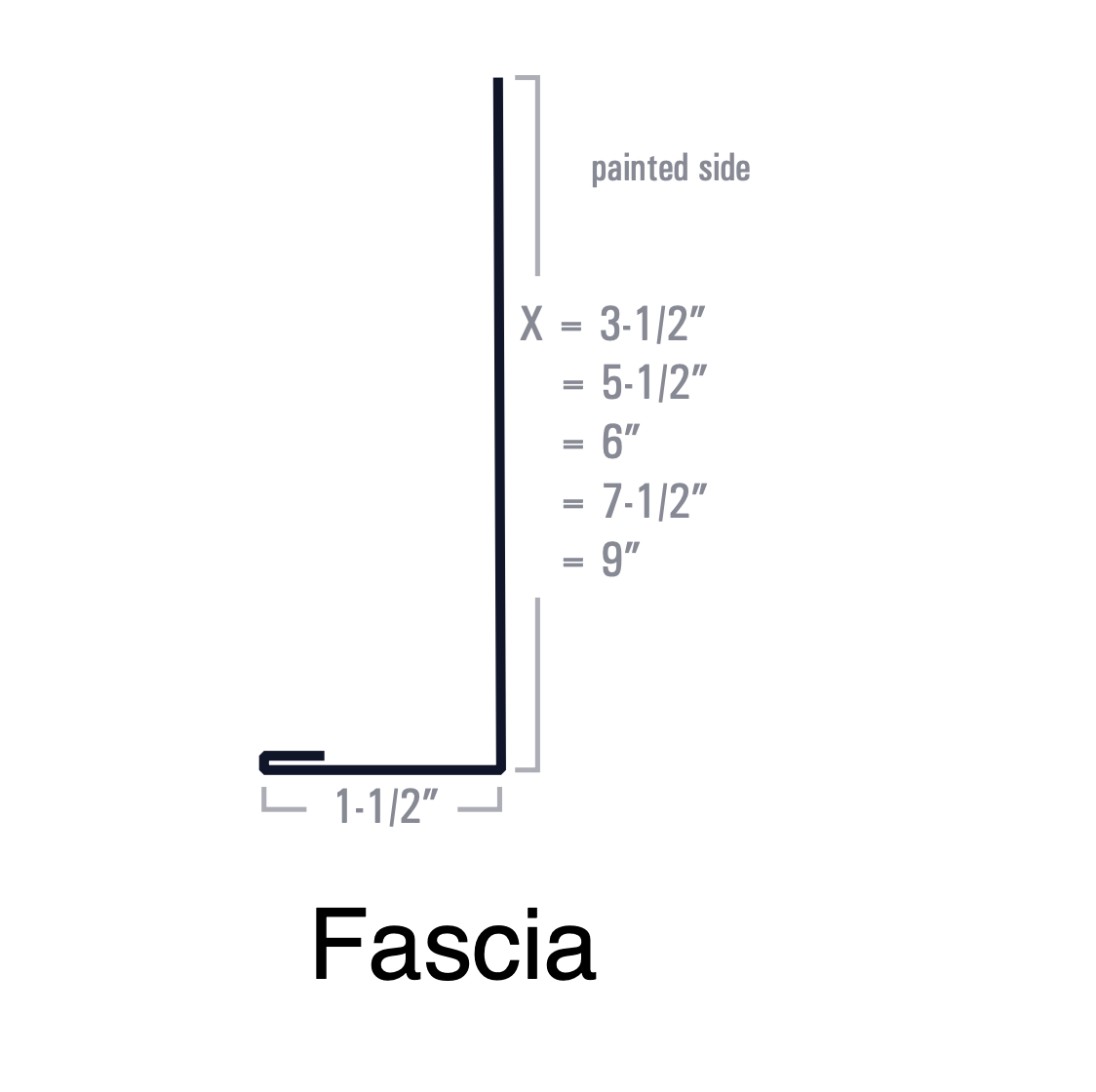

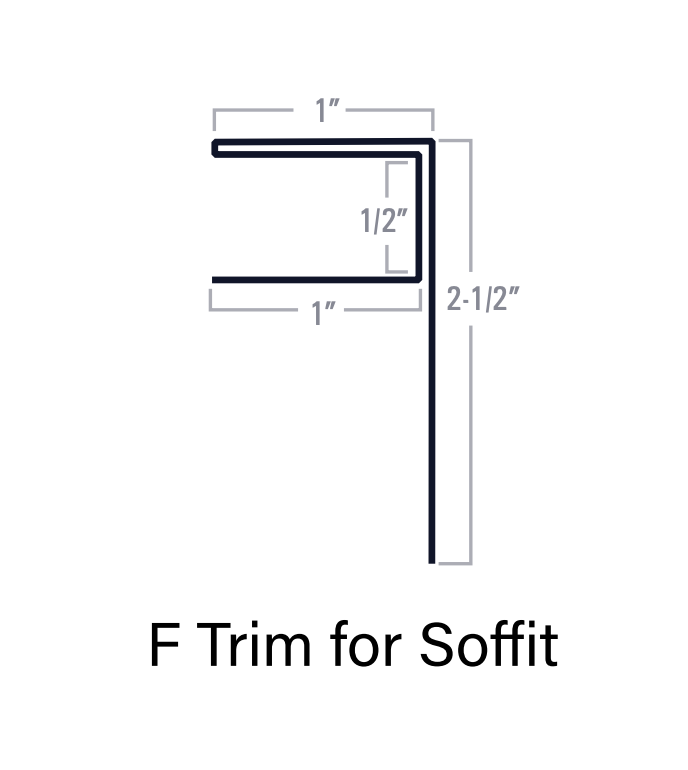

Trims
