RX-4 Panels

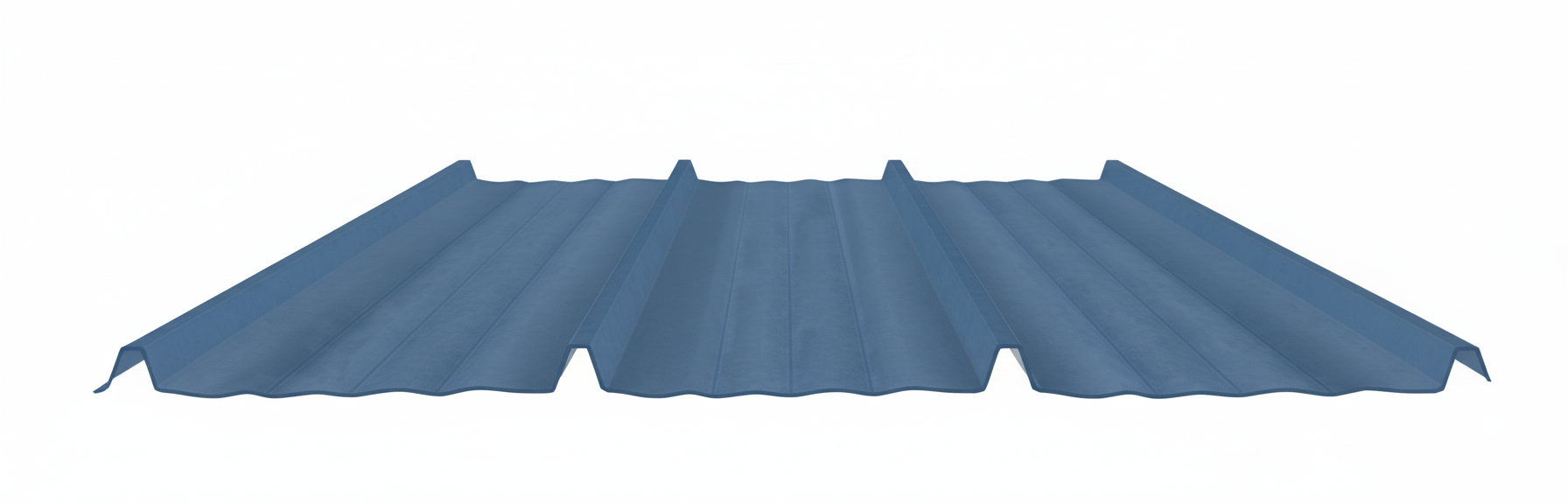

Reurink’s RX-4 Panel is suited for roofing & siding applications. The exposed fastener panel offers a high-end residential look.

Specifications

Check mark inside a circle, indicating a task or selection is complete.

Thickness

• 28 Gauge Steel – .0157” Before Paint, .0176” After Paint


• Full Hard 88,000 PSI Min

Black check mark inside a circle.

Rust Protection

• AZ50 Galvalume Substrate

Check mark inside a circle.

Paint System

• Sherwin-Williams Weather XL

Check mark in a circle.

Sizing

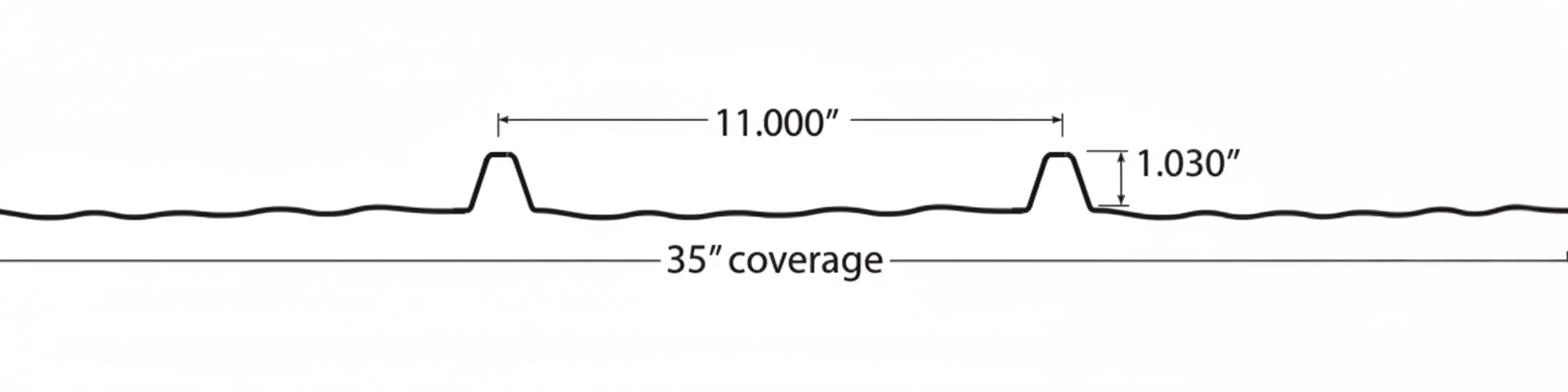

• 35” Coverage with 1.030” Rib Height


• Minimum Slope: 3/12

Sherwin-Williams Coil Coatings logo in black text on a white background.
WeatherXL logo with white text on a black rectangular background.

Standard

Color Selection Guide

Solid pale gray background.
Solid light gray background.
Solid light tan background.
Solid light beige background.
Solid light brown background.
Solid brown background.
Solid light taupe background.
Solid dark olive-brown background.
Solid brown background.
Solid red background.
Solid muted red background.
Solid dark maroon background.
Solid gray background.
Solid dark gray background.
Dark teal background.
Solid, dark teal-green background.
Solid dark green background.
Solid orange-brown color background.
Solid teal-colored background.
Solid teal background.
Brown and purple abstract textured background.
Close-up of gray, textured, fuzzy surface.

Note: This guide is for the following panel profiles: 28-GA Classic 5-Rib, RX-4, 3/4 Corrugated, Modern Plank, Metal-Lap, Board & Batten, and 5V.

Note: Also available in 26-GA.

Crinkle

Color Selection Guide

Red-orange speckled texture, possibly of fabric or other material.
Dark brown asphalt surface, textured with small, irregular granules.
Close-up of a brown, speckled surface, possibly pavement or textured material.
Dark green carpet with flecks of lighter green and white.
Dark speckled granite surface.
Dark speckled granite pattern.
Brown speckled surface.
Greenish-gray speckled texture, possibly a surface material like stone or asphalt.
Gray and white speckled surface.
Dark, speckled, textured surface, possibly stone or concrete.
White, textured surface.

Note: This guide is for the following panel profiles: 28-GA Classic 5-Rib, RX-4, 3/4 Corrugated, Modern Plank, Metal-Lap, Board & Batten, and 5V.

Speak to one of our experts!

All of our staff are extremely knowledgeable in their trade, when you choose Reurink you're getting unmatched customer service every time.

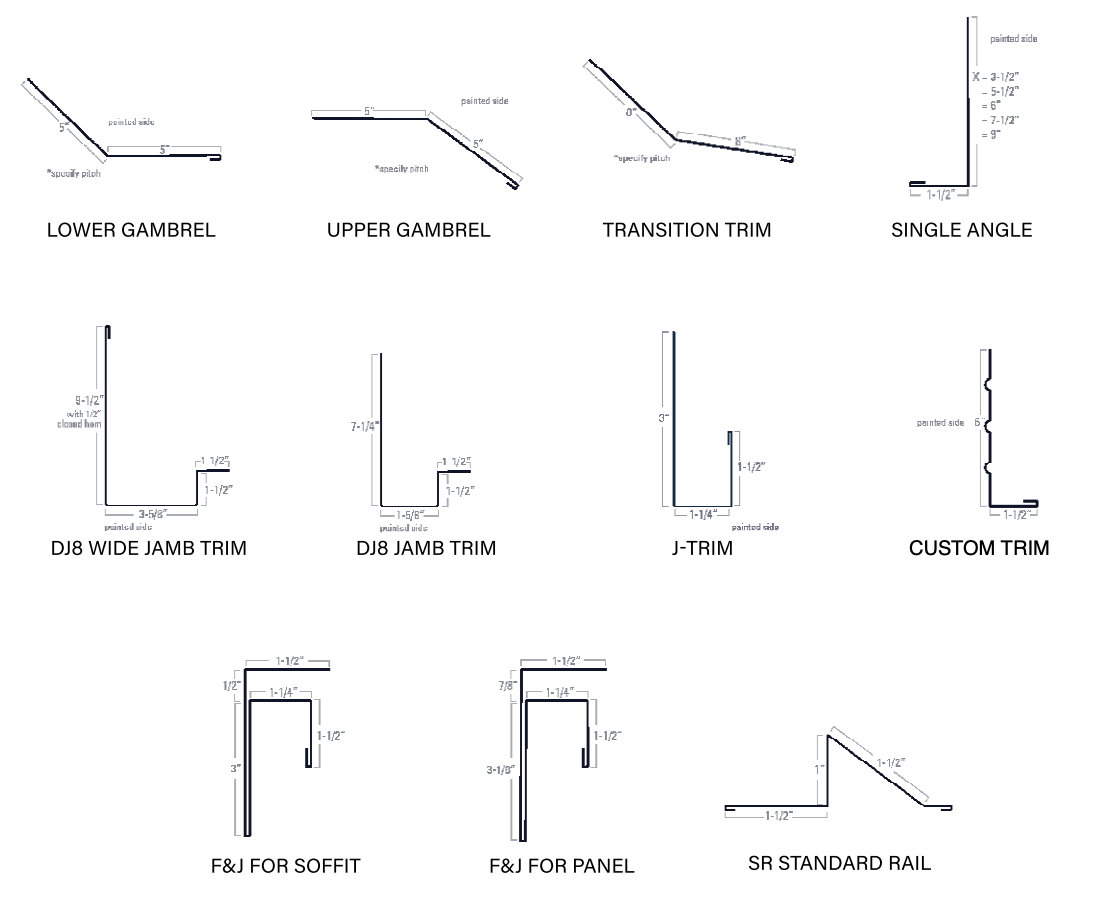

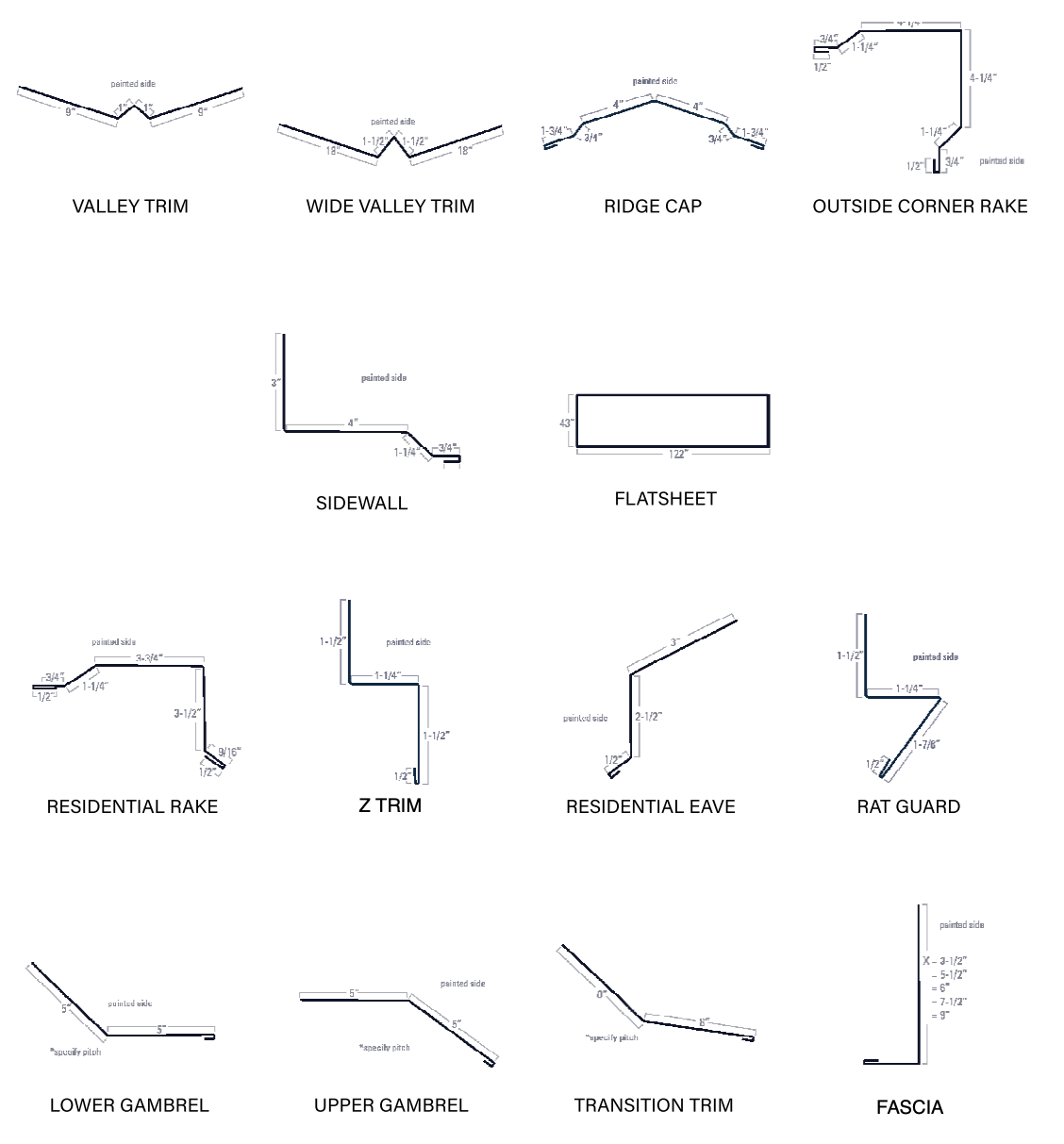

Trims

RX-4 Panel
