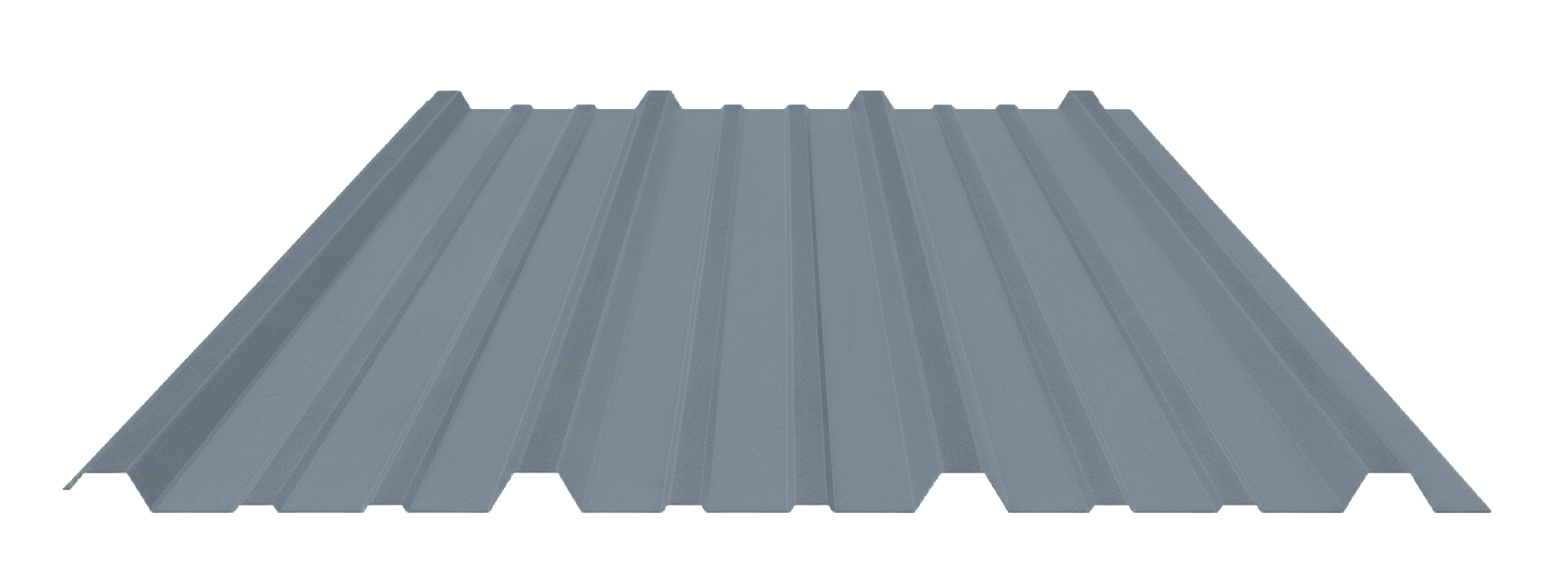

R-Panels

The popular and versatile R-Panel features a classic look and is used primarily for commercial, post-frame and steel frame building applications.

Specifications

Check mark inside a circle.

Thickness

26 Gauge Steel — .0185” Before Paint, .0202” After Paint


50,000 PSI Min

Check mark inside a circle.

Rust Protection

• AZ50 Galvalume Substrate

Check mark inside a circle.

Paint System

• Sherwin-Williams Weather XL

Check mark inside a circle.

Sizing

36” Coverage with 1.25” Rib Height
Minimum Slope: 1.5/12

Sherwin-Williams Coil Coatings logo. Black text on white background.
WeatherXL logo in white text on a black rectangle.

R-Panel

Color Selection Guide

26-GA Liftime

Light gray background.
Solid dark olive green background.
Plain, solid tan background.
Solid light taupe background.
Close-up of gray, textured fabric with a rough, uneven surface.
Solid dark brown background.
Solid dark gray background.
Dark teal solid background.
Solid dark green background.

Note: This guide is for the following panel profiles: 28-GA Classic 5-Rib, RX-4, 3/4 Corrugated, Modern Plank, Metal-Lap, Board & Batten, and 5V.

Note: Also available in 26-GA.

Speak to one of our experts!

All of our staff are extremely knowledgeable in their trade, when you choose Reurink you're getting unmatched customer service every time.

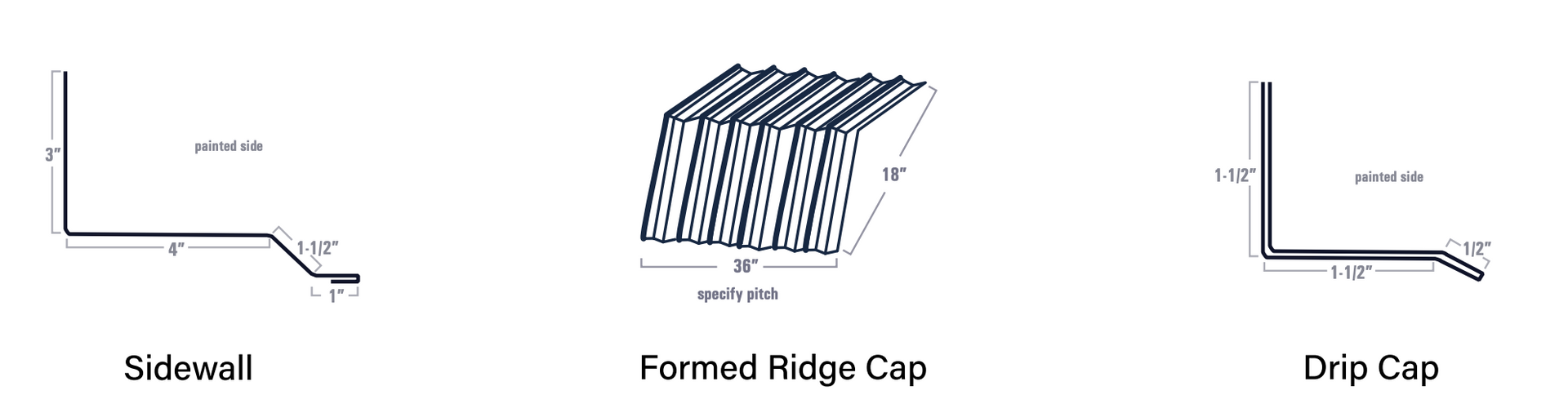

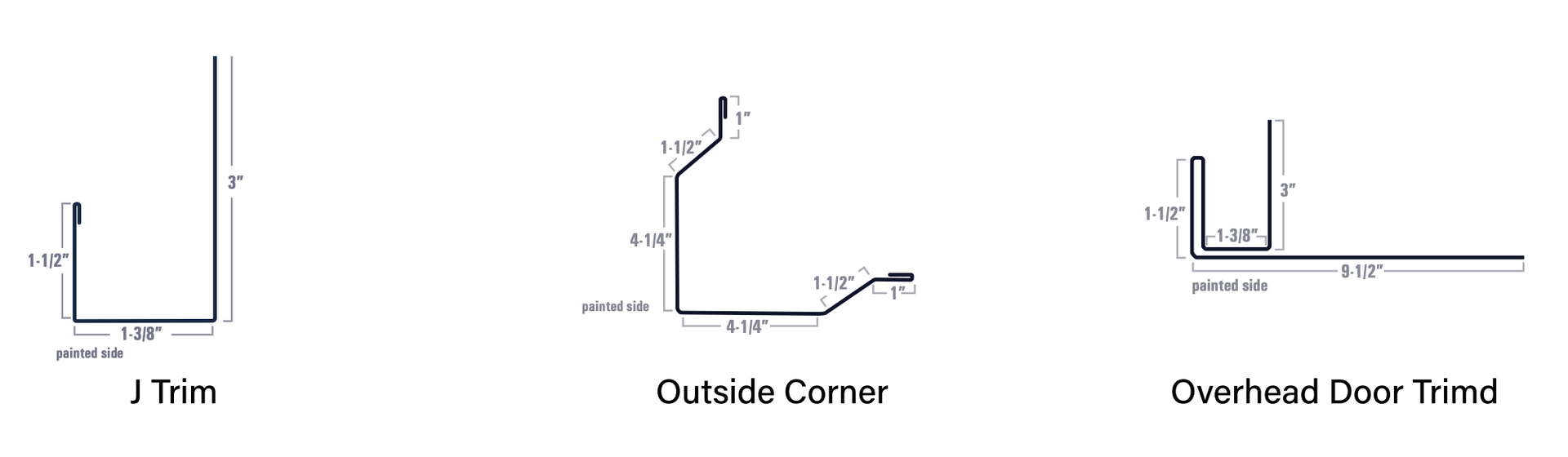

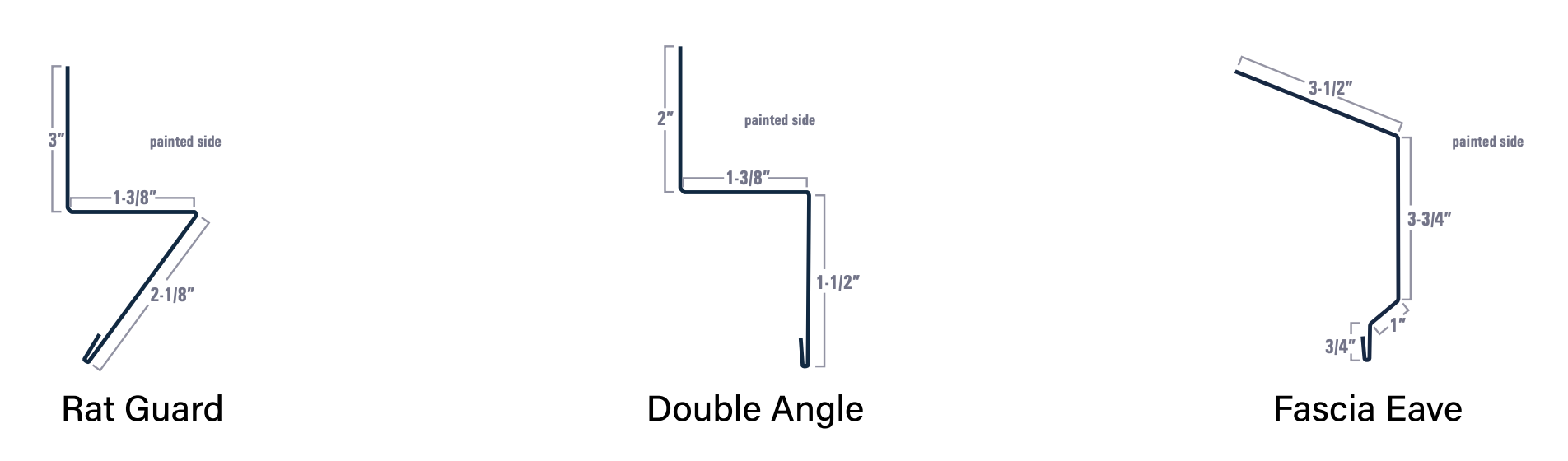

Trims

R-Panel
