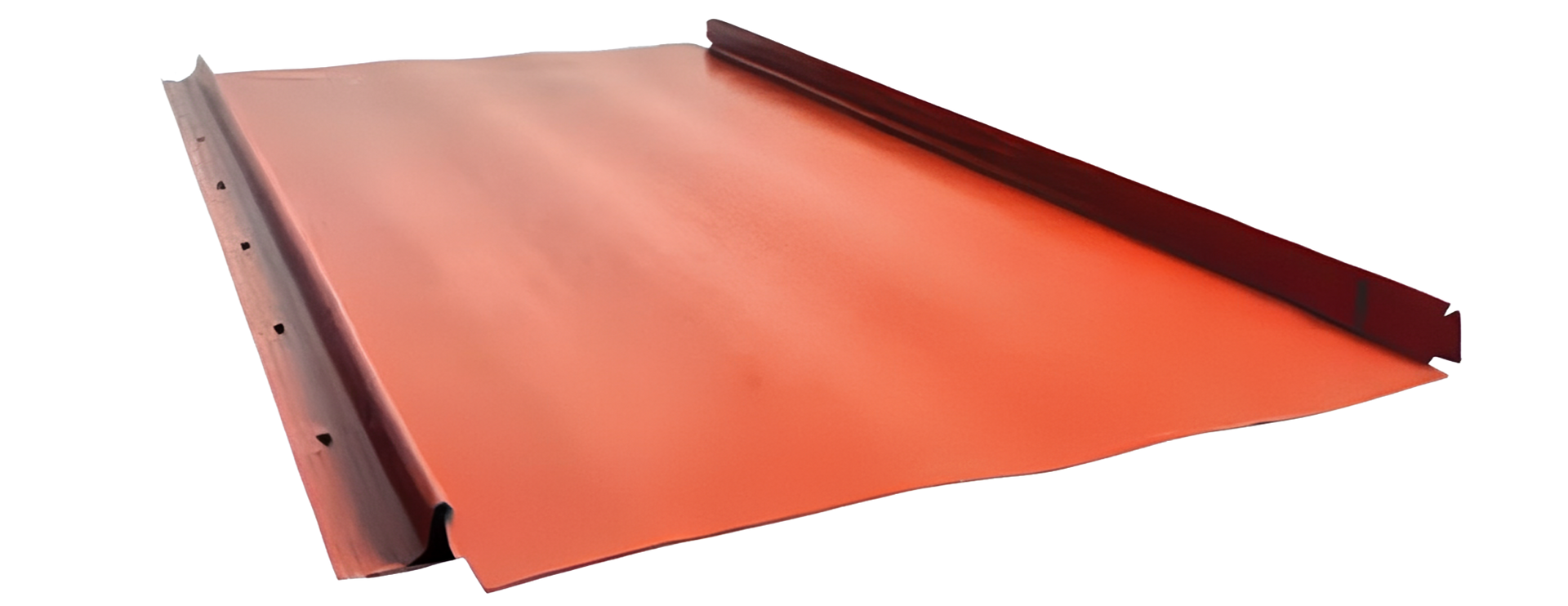

Snap Lock

Snap Lock is designed with a concealed fastener system. Additionally, the panel comes with a pre-notched option which saves contractors installation time on the job site.

Specifications

Black check mark inside a circle.

Thickness

• 26 Gauge Steel – .0185” Before Paint, .0202” After Paint


• 50,000 PSI

Checkmark icon inside a circle, indicating a task is complete.

Rust Protection

• AZ50 Galvalume Substrate

Black check mark inside a circle.

Paint System

• Sherwin-Williams Weather XL

• Kynar 500 in select colors

Black check mark inside a circle.

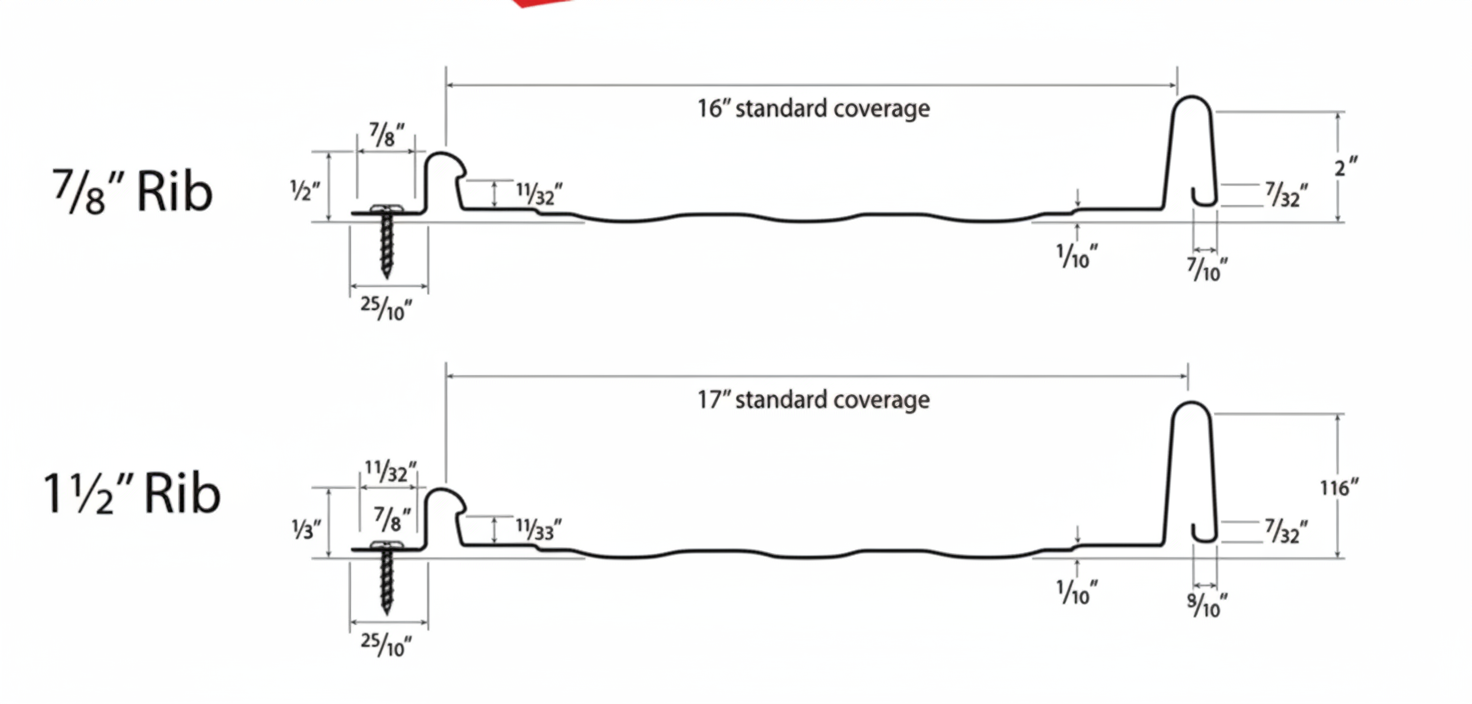

Sizing

• 16” & 17” Coverage with 1” & 1.5” Rib Height
• Minimum Slope: 3/12

Sherwin-Williams Coil Coatings logo. Black text on white background.
WeatherXL logo in white text on a black rectangle.

26-Ga Smooth

Color Selection Guide

Solid brown background.
Solid dark gray background.
Solid dark green background.
Solid dark red background.
Solid teal background.
Solid olive green background.
Solid dark maroon background.
Dark teal background.
Overlapping, concentric circle patterns in shades of gray.
Textured orange fabric.

26-Ga Crinkle Lifetime

Color Selection Guide

Brown, textured background.
Brown, textured surface with small, irregular patterns.
Red textured background.
Dark teal background.
Dark, textured background, possibly asphalt or fabric.
Gray textured surface.

26-Ga Crinkle Lifetime

Color Selection Guide

Solid dark green background.
Dark gray background.
Solid dark olive-brown background.
Solid dark brown background.
Solid teal background.
Solid maroon background.
Solid dark gray background.
Solid background, dark gray.

Speak to one of our experts!

All of our staff are extremely knowledgeable in their trade, when you choose Reurink you're getting unmatched customer service every time.

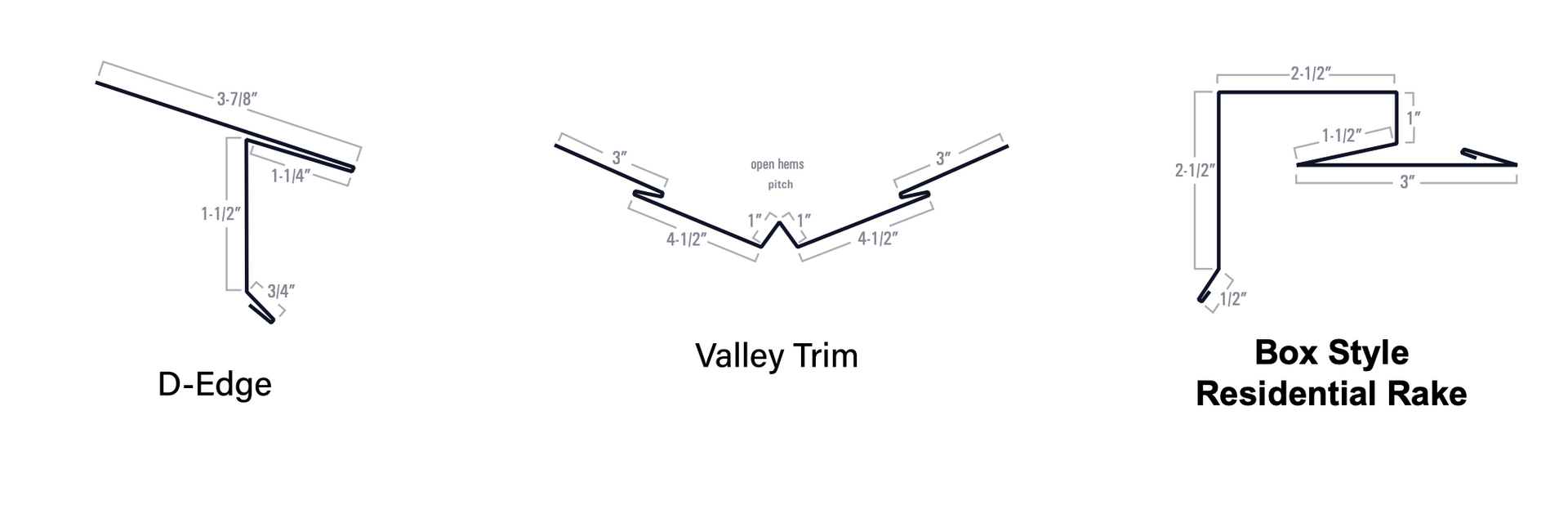

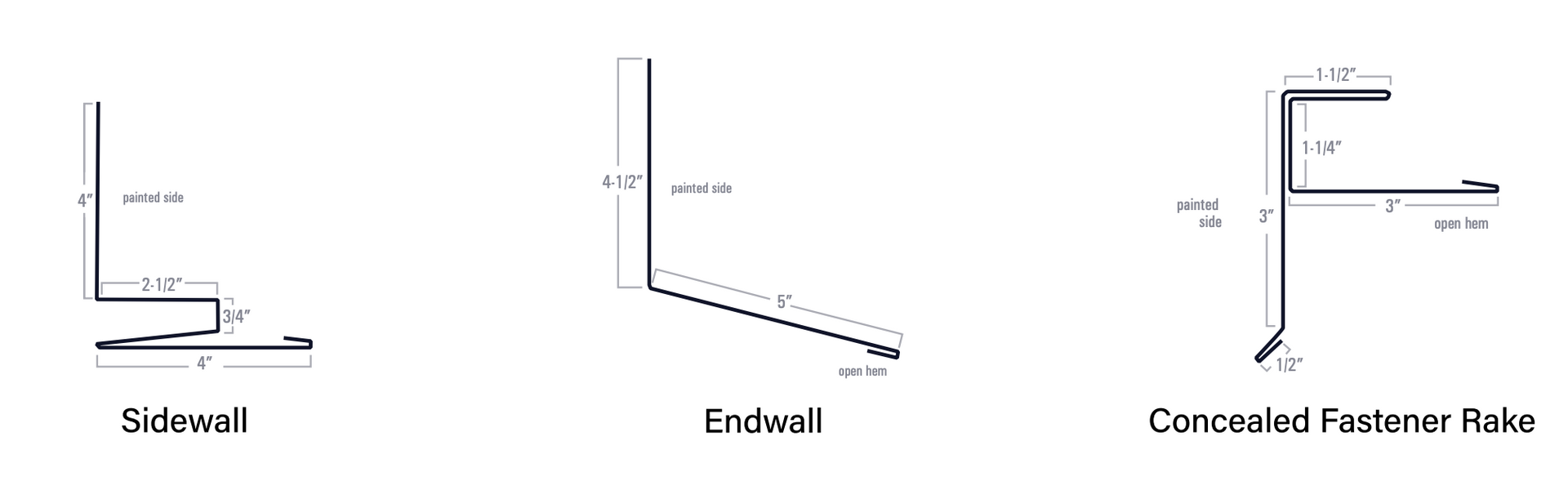

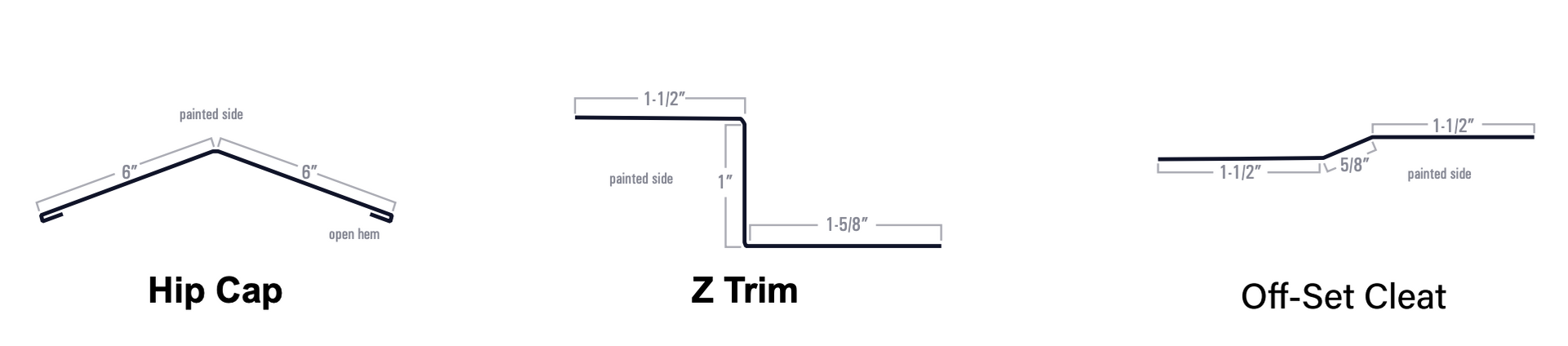

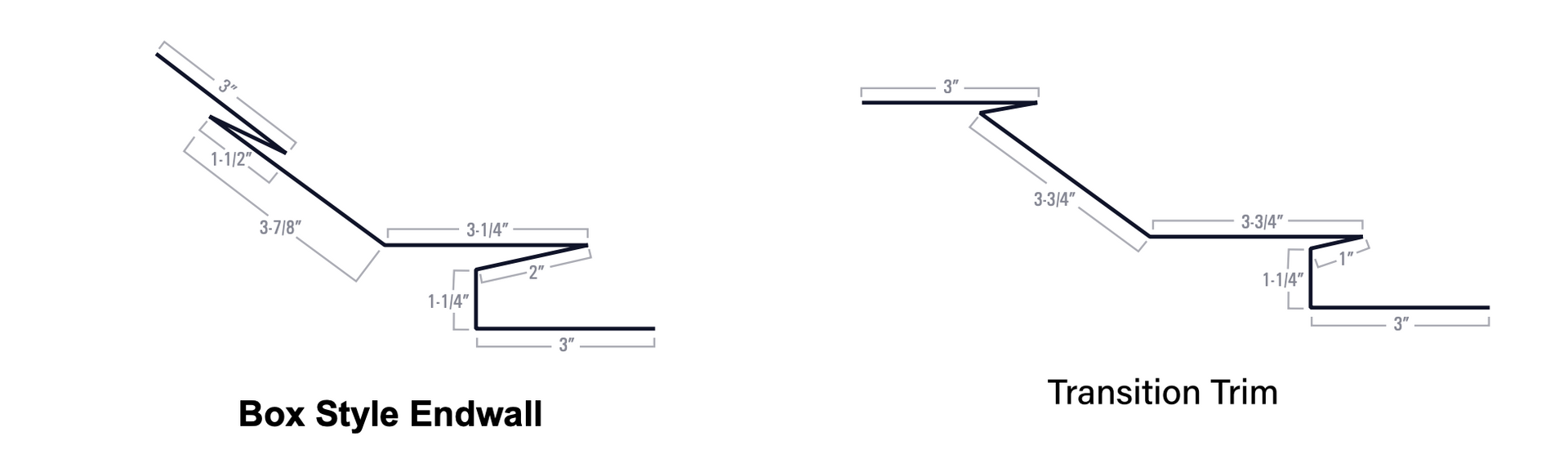

1" Trims

Snap Lock Panel

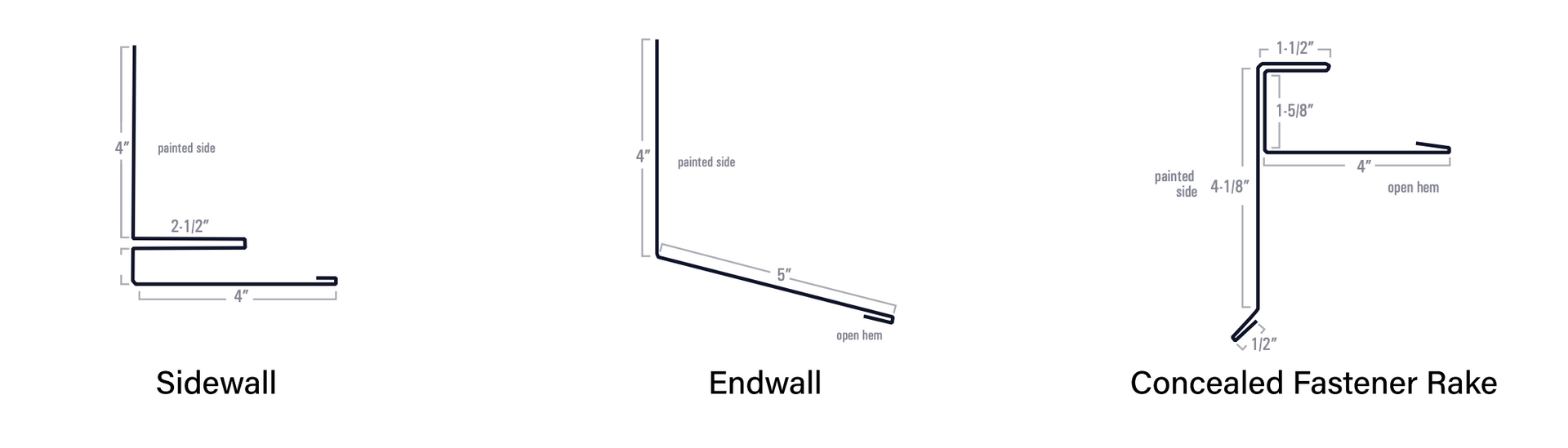

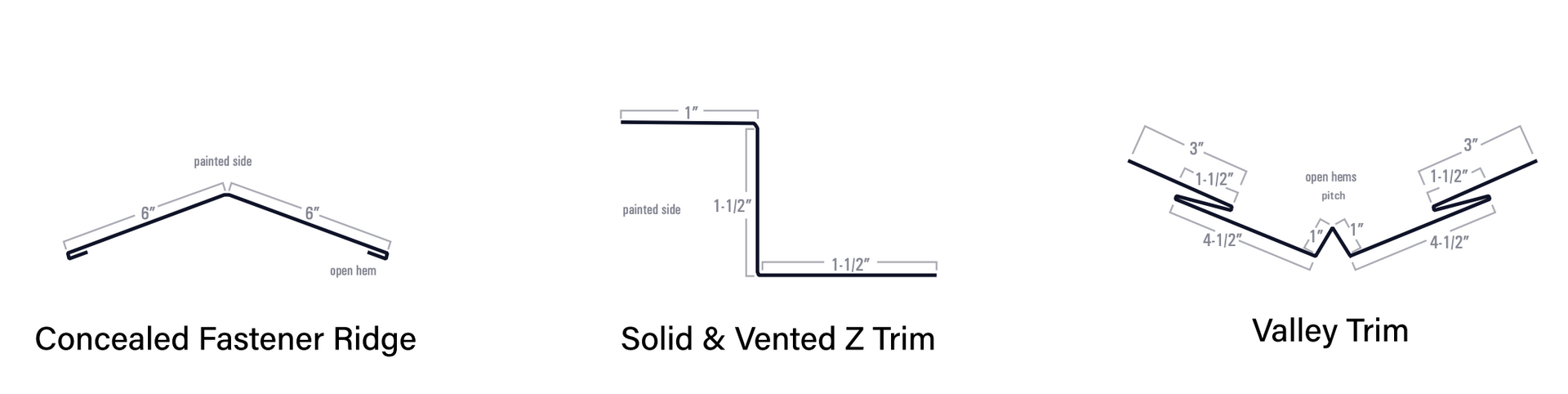

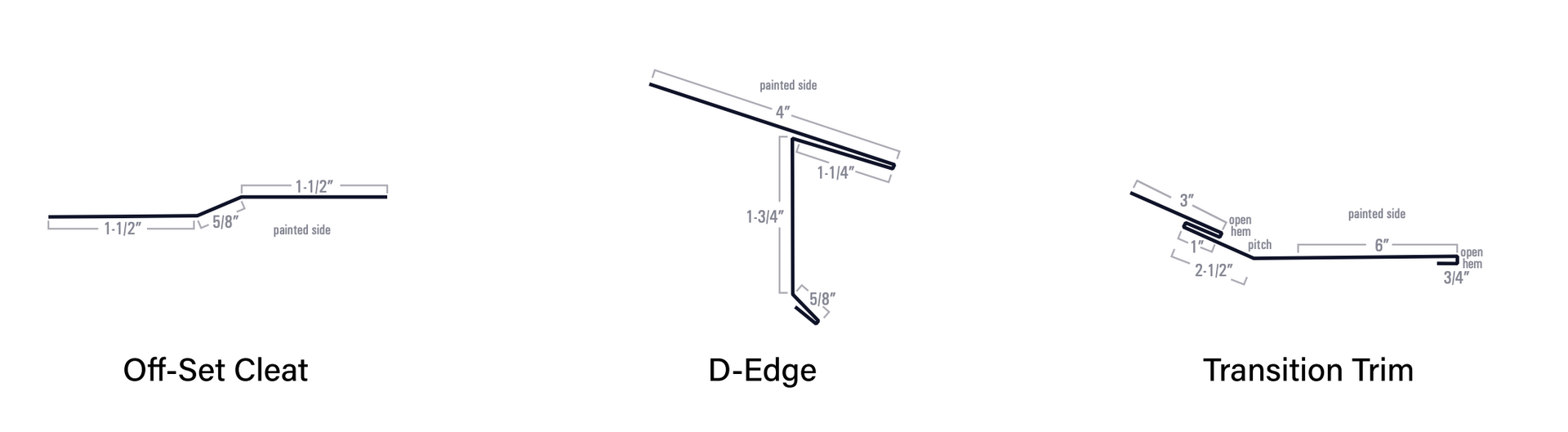

1.5" Tirms

Snap Lock Panel
